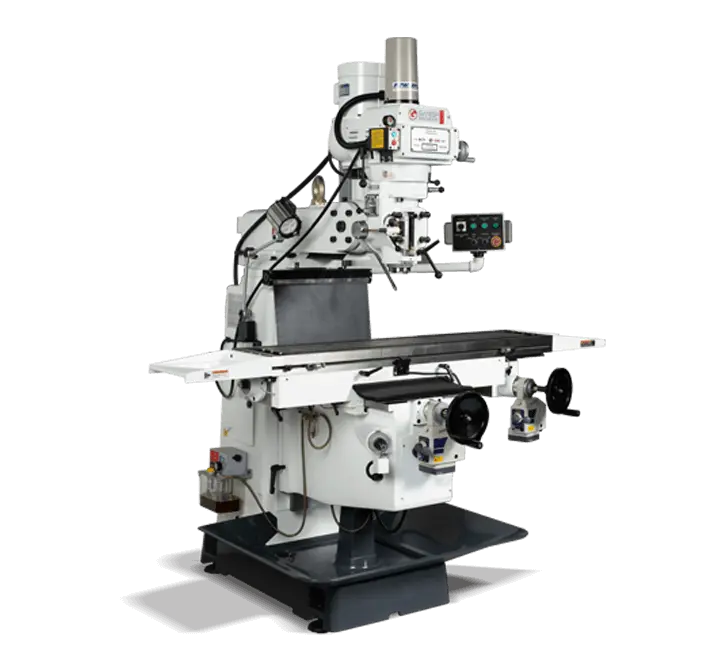

New EXPAND MACHINERY GMV-5 | CNC Milling Machines

Table Size (W x L)12″ x 58″
T-slot Width (3 Hardened & Ground T-Slots) 5/8″ with ground reference edges (15.9 mm wide)
Table Capacity 1,500 lbs

MACHINE TRAVELS & CAPACITY
Table Travel – X Axis (With or without Power Feed) 40.5″
Cross Travel – Y Axis 15.75″
Knee Travel – Z Axis 16″
Ram Travel (Overarm) / Swivel 17.7″
Spindle Nose-to-Table Surface Travel 2″ – 18″
Quill Travel – Manual & Power Feed 5″
Quill Feeds – With Trip Release – Inch 0.0015″ / 0.003″ / 0.006″
Quill Diameter 4.13″
Leadscrew ground pitch (X & Y) 0.2″ per rev.

SPINDLE HEAD
Head Tilt (Left-to-Right)90° – 0 – 90°
Head Tilt (Front-to-Back / Up-Down)45° – 0 – 45°
Head Swivel 360°
Spindle Motor 5 HP / 3 Phase / 220 vac
Spindle Taper NT #40-Taper
Spindle Runout 0.0002″ maximum runout (0.005 mm)
Spindle Bearings ABEC-7 matched set of Class-7 bearings
Variable Speed Drive – Dual Range 80 – 520 RPM (low-range) / 600 – 4,000 RPM (high-range)

NOTE: 5,000 RPM Spindle available with optional
AC Inverter Spindle Head
