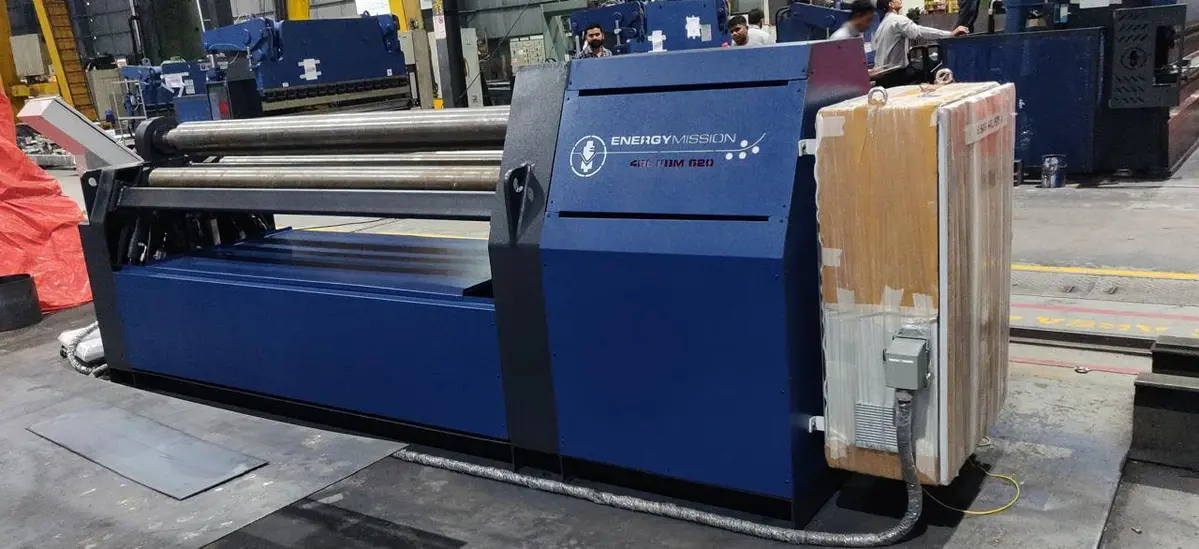

New ENERGY MISSION 4RL PBM 620 | Plate Rollers
Have one to sell?
ConditionNew
1 available
New
Useful Length 78.7”
Bending Capacity ¼”
Pre-Bending Capacity .16”
Motor 5 HP
Top Roll Diameter 7.87”
Bottom Roll Diameter 7.87”
Side Roll Diameter 7”
Min. Diameter Pre-Bending Capacity 14.7”
Min. Diameter Bending Capacity 23.6”
Plate Rolling Speed 118 In/min
Main Drive Motor
Manual Centralized Lubrication System
Planetary Gearbox Attached w/ Hydraulic Motor
4-Roll Pyramid Type Design with Double Pre-Pinching Arrangement
High Roll Roundness Consistency
Fixed Top Roll, Up/Down Bottom Roll, Side Rolls Inclined
Side & Bottom Rolls Up/Down through Hydraulic Cylinders
Built in Cone Bending Attachment
DRO for Both Side Roll Position and Bottom Roll
