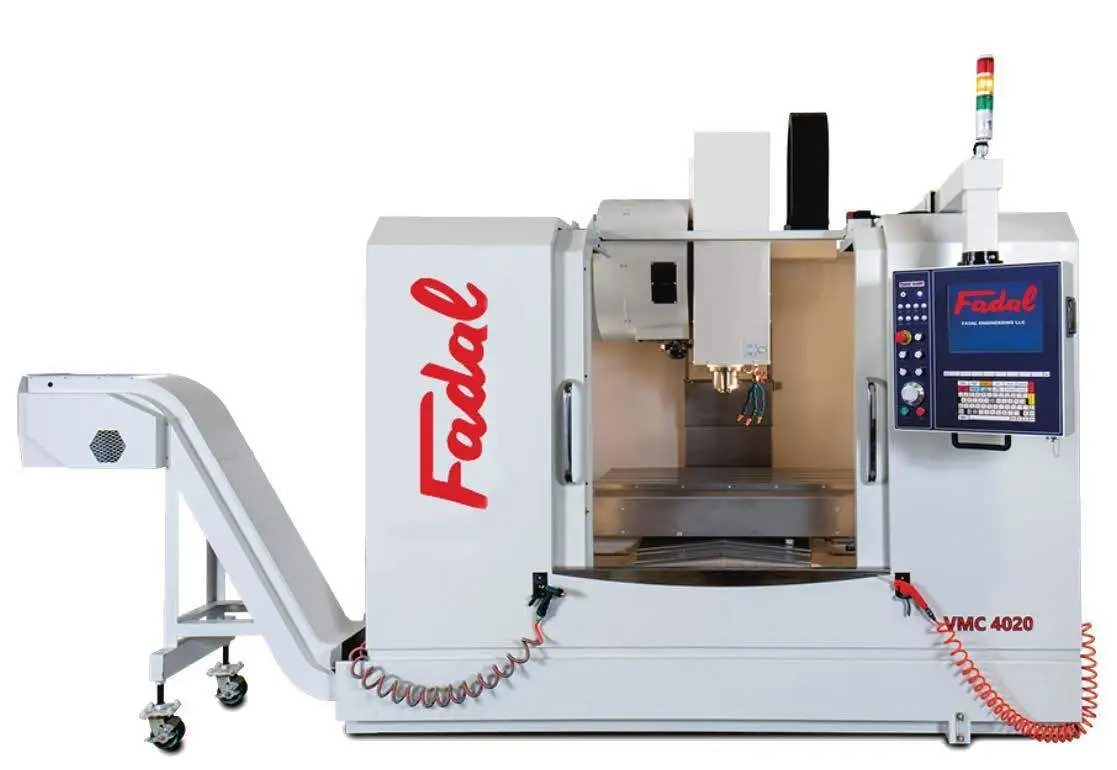

New FADAL VMC-4020 | Vertical Machining Centers
Have one to sell?
ConditionNew
New
This milling machine is designed to deliver high material removal rates, and reduced part cycle times while holding increased positioning accuracy and repeatability. Its heavy box-way design results in maximum vibration dampening. The box ways are ground and hardened and utilize non-metallic liners that are virtually friction-free on all way and gibs surfaces to ensure vibration-free cutting for consistently closer tolerances. 10,000 RPM CAT 40, 220 FT/LBS of torque with rapid rates up to 900 IPM and a 40X20 work envelope.
Travel
X-axis Travel (in.) 40
Y-axis Travel (in.) 20
Z-axis Travel (in.) 20/30*
Spindle Nose to Table (in.) 5-25/5-35*
Spindle Center to Column (in.) 21.25
Table
Table Dimensions (in.) 47.25 x 19.75
T-Slot Dimensions (in.) (5) 3.75 x .709 x 1.25
Max. Table Load (lbs.) 1,320
Spindle
Spindle Type CAT-40/BT-40*
Spindle Speed (RPM) 10,000/15,000*
Spindle Torque (ft. lbs.) 220/300*
Spindle Motor (HP) Peak 22.5/30*
Feed
Rapid Traverse Rate X,Y & Z (IPM) 1,000 / 1,000 / 1,000
Ballscrew Diameter X,Y & Z Axis (mm) 40
ATC
Tool Capacity 24/30*/40*
Tool Change Type Dual Arm
Max. Tool Weight (lbs.) 15
Max. Tool Diameter (in.) (with adjacent tool) 4.9 (3.1)
Max. Tool Length (in.) 13.5
Tool Selection Method Random
Other
Machine Dimensions L x W x H (in.) 109 x 87 x 110
W/ Chip Conveyor 155 x 87 x 110
Machine Weight (lbs.) 12,140
Specifications are subject to change without notice
*Optional
Controller:
Backward Compatible: 88HS & MP
15″ Color Monitor
Memory 4GB
3,000 Blocks/Sec Look Ahead
Networking & USB Ports
High Speed Machining
Jog Away
Mirror Imaging
Mid-Program Start
Conversational Programming
5 Axis Compatible
Coordinate Rotation & Scaling
Rigid Box Way Construction
Dual Spindle Range
24 Tool Dual Arm Tool Changer
Spindle Oil Cooler
Rigid Taping
High Speed Machining
LED Work Lamp
Fully Enclosed
Spindle Air Blast
Automatic PDI Lubrication System
Operation Indicator Lamp
3-Stage Chip Separation
Dual Supported / Pre-Tensioned Ballscrews
Auto Lubricated Ball Screws & Thrust Bearings
High Torque Spindle Package
Cooled Electrical Cabinet
2- Year /4,000 User-Hours Warranty*
*Whichever comes first
