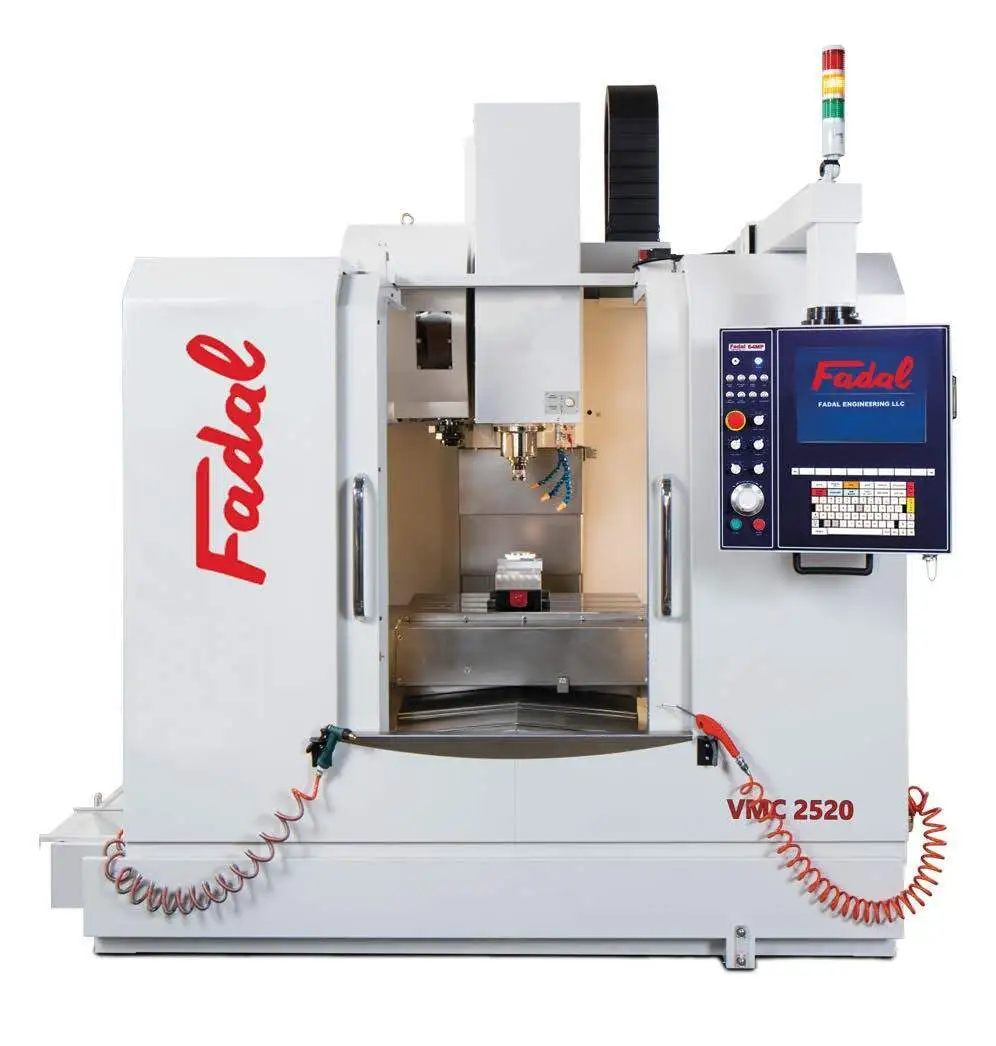

New FADAL VMC2520 | Vertical Machining Centers

Controller:
Backward Compatible
88HS & MP
4GB Memory
3,000 Blocks/Sec Look Ahead
15″ Color Monitor
Networking & USB Ports
High Speed Machining
Jog Away
Mirror Imaging
Mid-Program Start
Conversational Programming
5 Axis Compatible Coordinate
Rotation Scaling
*Specifications are subject to change without notice

Travel
X-axis Travel (in.) 25.5
Y-axis Travel (in.) 20
Z-axis Travel (in.) 20/30*
Spindle Nose to Table (in.) 5-25/5-35*
Spindle Center to Column (in.) 21
Table
Table Dimensions (in.) 31.6 x 17.75
T-Slot Dimensions (in.) (3) 5 x .709 x 1.25
Max. Table Load (lbs.) 990
Spindle
Spindle Type CAT-40/BT-40*
Spindle Speed (RPM) 10,000/15,000*
Spindle Torque (ft. lbs.) 220
Spindle Motor (HP) Peak 22.5
Feed
Rapid Travel Rate X,Y & Z (IPM) 1,410 / 1,410 / 1,187
Ballscrew Diameter X, Y & Z Axis (mm) 40
ATC
Tool Capacity 24
Tool Change Type Dual Arm
Tool Change Time (sec.) 1.5 Tool to tool
Max. Tool Weight (lbs.) 15
Max. Tool Diameter (in.) (with adjacent tool) 4.9 (3.1)
Max. Tool Length (in.) 13.5
Tool Selection Method Random
Other
Machine Dimensions L x W x H (in.) 100 x 96 x 107
W/ Chip Conveyor 161 x 96 x 107
Machine Weight (lbs.) 10,978
Specifications are subject to change without notice
*Optional
