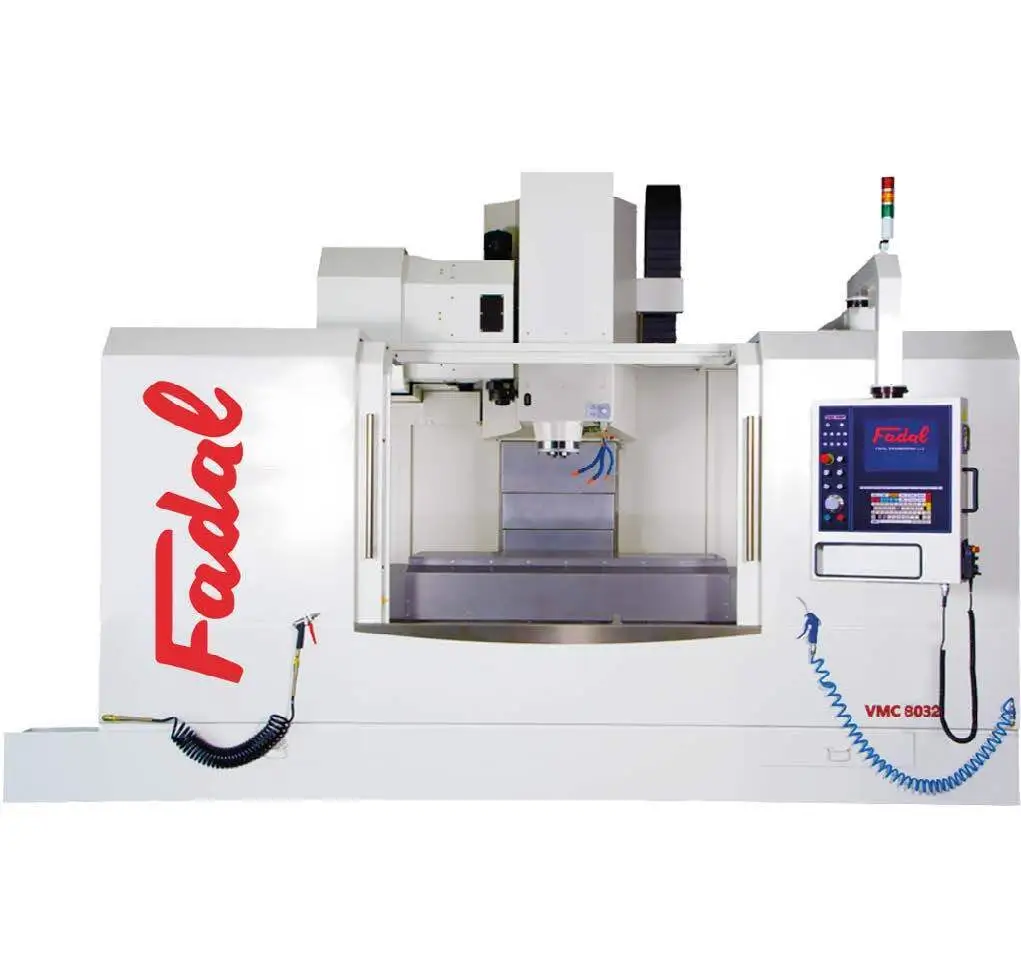

New FADAL VMC-8032 | Vertical Machining Centers
Have one to sell?
ConditionNew
New
6032/8032 models can be configured with a CAT50 6,000 RPM spindle with a two speed transmission. Both models offer a 10,000 RPM CAT 40 dual belt transmission with 220 FT/LBS of torque, and quad box way “Y” axis support structure providing full way contact at full stroke unlike many competitors.
Travel
X-axis Travel (in.) 80
Y-axis Travel (in.) 32
Z-axis Travel (in.) 30
Spindle Nose to Table (in.) 5-35
Spindle Center to Column (in.) 34.375
Table
Table Dimensions (in.) 81.5×30
T-Slot Dimensions (in.) (5) 5.5 x .709 x 1.25
Max. Table Load (lbs.) 4,840
Spindle
Spindle Type CAT-40 / BT-40*
Spindle Speed (RPM) 10,000 / 15,000
Spindle Torque (ft. lbs.) 220 / 300*
Spindle Motor (HP) Peak 22.5 / 30*
Feed
Rapid Traverse Rate X,Y & Z (IPM) 787 / 787 /590
Ballscrew Diameter X,Y & Z Axis (mm) 50
ATC
Tool Capacity 24/30/40
Tool Change Type Dual Arm
Max. Tool Weight (lbs.) 15
Max. Tool Diameter (in.) (with adjacent tool) 5 (3.1)
Max. Tool Length (in.) 11.8
Tool Selection Method Random
Other
Machine Dimensions L x W x H (in.) 218x 118 x 132
W/ Chip Conveyor 272 x 118 x 132
Machine Weight (lbs.) 34,600
Specifications are subject to change without notice
*Optional
Controller:
Backward Compatible: 88HS & MP
15″ Color Monitor
Memory 4GB
3,000 Blocks/Sec Look Ahead
Networking & USB Ports
High Speed Machining
Jog Away
Mirror Imaging
Mid-Program Start
Conversational Programming
5 Axis Compatible
Coordinate Rotation & Scaling
Rigid Box Way Construction
Extremely Rigid Y-Axis Quad Ways
Dual Range / High Torque Spindle
24 Tool Dual Arm Tool Changer
Spindle Oil Cooler
Rigid Taping
High Speed Machining
Bright LED Work Lamp & Light Tubes
Fully Enclosed
4 x Chip Augers (3 w/ Optional Chip conveyor)
Spindle Air Blast
Automatic PDI Lubrication System
Dual Supported / Pre-Tensioned Ballscrews
Auto Lubricated Ballscrews & Thrust Bearings
Operation Indicator Lamp
Chip Wash Down System
3-Stage Chip Separation
2- Year /4,000 User-Hours Warranty*
*Whichever comes first
