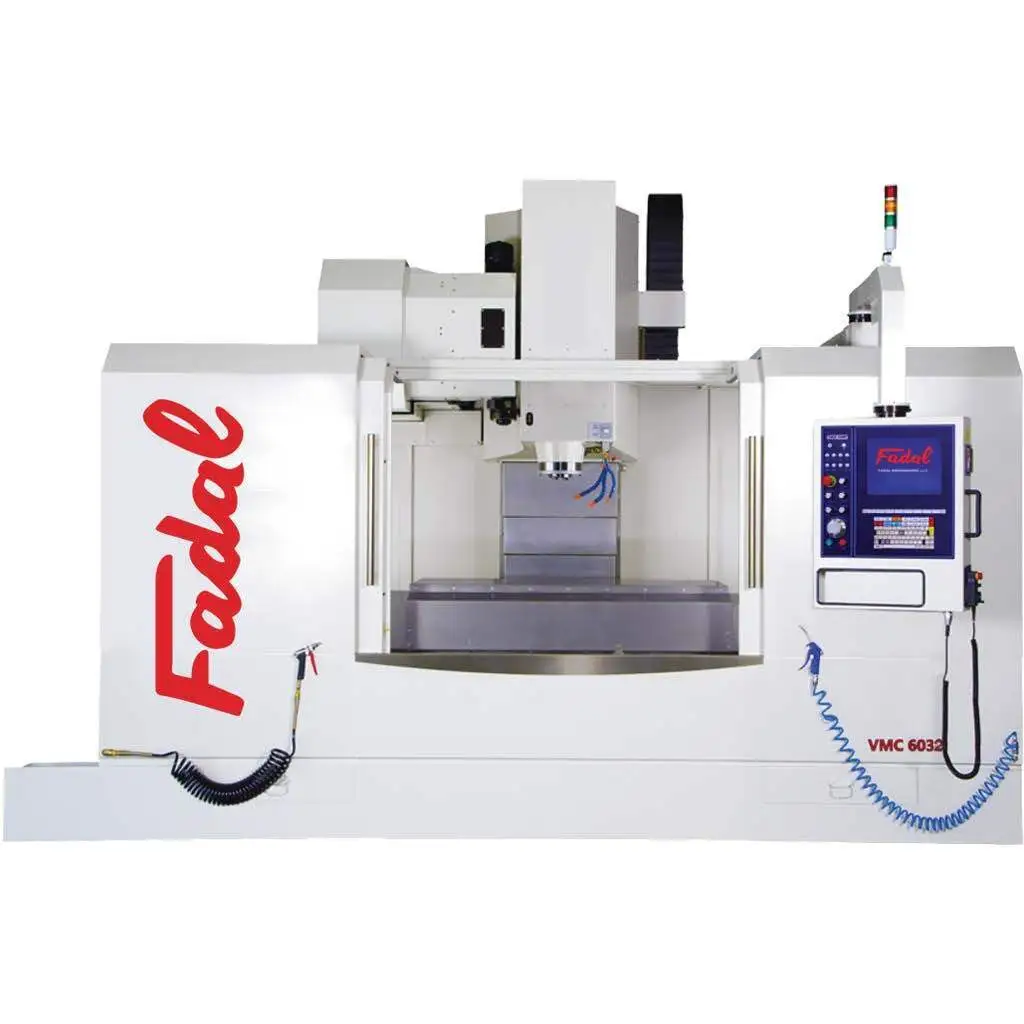

New FADAL VMC-6032/50 | Vertical Machining Centers

Travel
X-axis Travel (in.) 60
Y-axis Travel (in.) 32
Z-axis Travel (in.) 30
Spindle Nose to Table (in.) 5-35
Spindle Center to Column (in.) 34.375
Table
Table Dimensions (in.) 61×30
T-Slot Dimensions (in.) (5) 5.5 x .709 x 1.25
Max. Table Load (lbs.) 4,400
Spindle
Spindle Type CAT-50/BT-50*
Spindle Speed (RPM) 6,000
Spindle Torque (ft. lbs.) 425
Spindle Motor (HP) Peak 45
Feed
Rapid Traverse Rate X,Y & Z (IPM) 787 / 787 /590
Ballscrew Diameter X,Y & Z Axis (mm) 50
ATC
Tool Capacity 32 / 40*
Tool Change Time (sec.) 2 (tool to tool)
Tool Change Type Dual Arm
Max. Tool Weight (lbs.) 35
Max. Tool Diameter (in.) (with adjacent tool) 4.9 (3.1)
Max. Tool Length (in.) 15.75
Tool Selection Method Random
Other
Machine Dimensions L x W x H (in.) 166 x 127 x 132
W/ Chip Conveyor 220 x 127 x 132
Machine Weight (lbs.) 36,400
Specifications are subject to change without notice
*Optional
