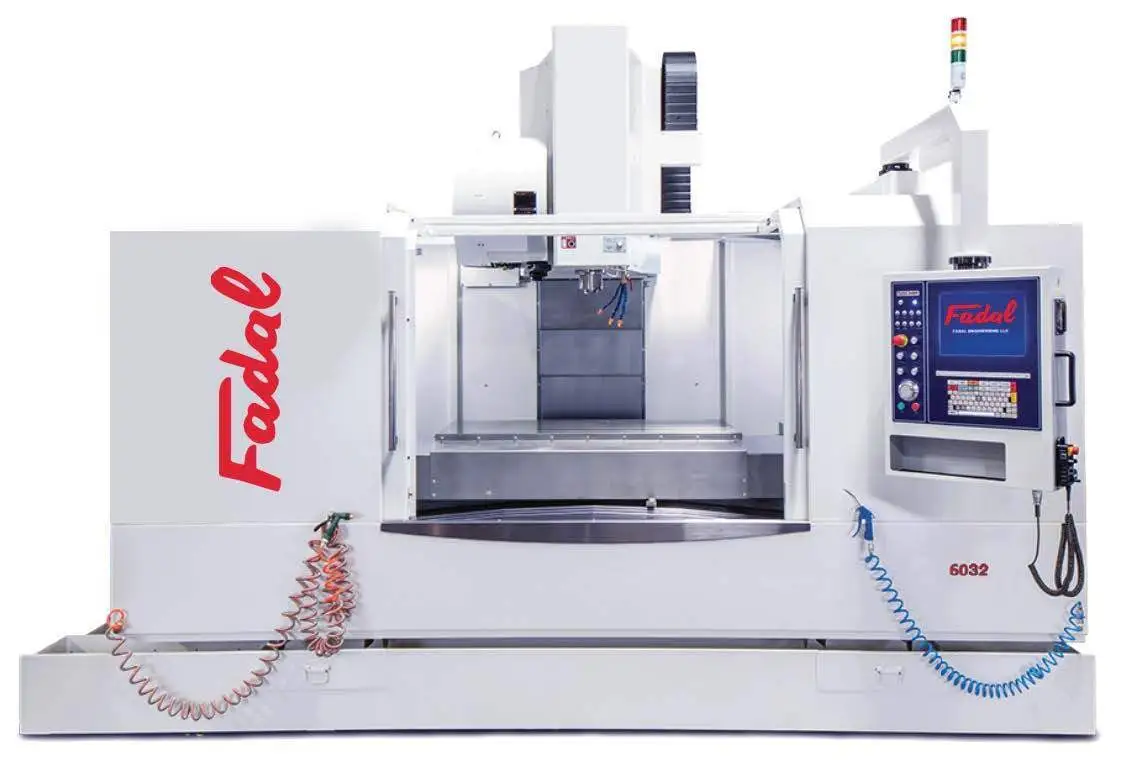

New FADAL VMC-6032 | Vertical Machining Centers
Have one to sell?
ConditionNew
New
6032/8032 models can be configured with a CAT50 6,000 RPM spindle with a two speed transmission. Both models offer a 10,000 RPM CAT 40 dual belt transmission with 220 FT/LBS of torque, and quad box way “Y” axis support structure providing full way contact at full stroke unlike many competitors.
Travel
X-axis Travel (in.) 60
Y-axis Travel (in.) 32
Z-axis Travel (in.) 30
Spindle Nose to Table (in.) 5-35
Spindle Center to Column (in.) 30.2
Table
Table Dimensions (in.) 61×30
T-Slot Dimensions (in.) (5) 5.5 x .709 x 1.25
Max. Table Load (lbs.) 4,400
Spindle
Spindle Type CAT-40/BT-40*
Spindle Speed (RPM) 10,000/15,000*
Spindle Torque (ft. lbs.) 220/300*
Spindle Motor (HP) Peak 22.5/30*
Feed
Rapid Traverse Rate X,Y & Z (IPM) 787 / 787 /590
Ballscrew Diameter X,Y & Z Axis (mm) 50
ATC
Tool Capacity 24 / 30* / 40*
Tool Change Time (sec.) 1.5 tool to tool
Tool Change Type Dual Arm
Max. Tool Weight (lbs.) 15
Max. Tool Diameter (in.) (with adjacent tool) 4.9 (3.1)
Max. Tool Length (in.) 13.8
Tool Selection Method Random
Other
Machine Dimensions L x W x H (in.) 166 x 118 x 132
W/ Chip Conveyor 220 x 118 x 132
Machine Weight (lbs.) 32,400
Specifications are subject to change without notice
*Optional
Controller:
Backward Compatible: 88HS & MP
15″ Color Monitor
Memory 4GB
3,000 Blocks/Sec Look Ahead
Networking & USB Ports
High Speed Machining
Jog Away
Mirror Imaging
Mid-Program Start
Conversational Programming
5 Axis Compatible
Coordinate Rotation & Scaling
Rigid Box Way Construction
Extremely Rigid Y-Axis Quad Ways
Dual Range / High Torque Spindle
24 Tool Dual Arm Tool Changer
Spindle Oil Cooler
Rigid Taping
High Speed Machining
Bright LED Work Lamp & Light Tubes
Fully Enclosed
4 x Chip Augers (3 w/ Optional Chip conveyor)
Spindle Air Blast
Automatic PDI Lubrication System
Dual Supported / Pre-Tensioned Ballscrews
Auto Lubricated Ballscrews & Thrust
Bearings Operation Indicator Lamp
Chip Wash Down System
3-Stage Chip Separation
2- Year /4,000 User-Hours Warranty*
*Whichever comes first
