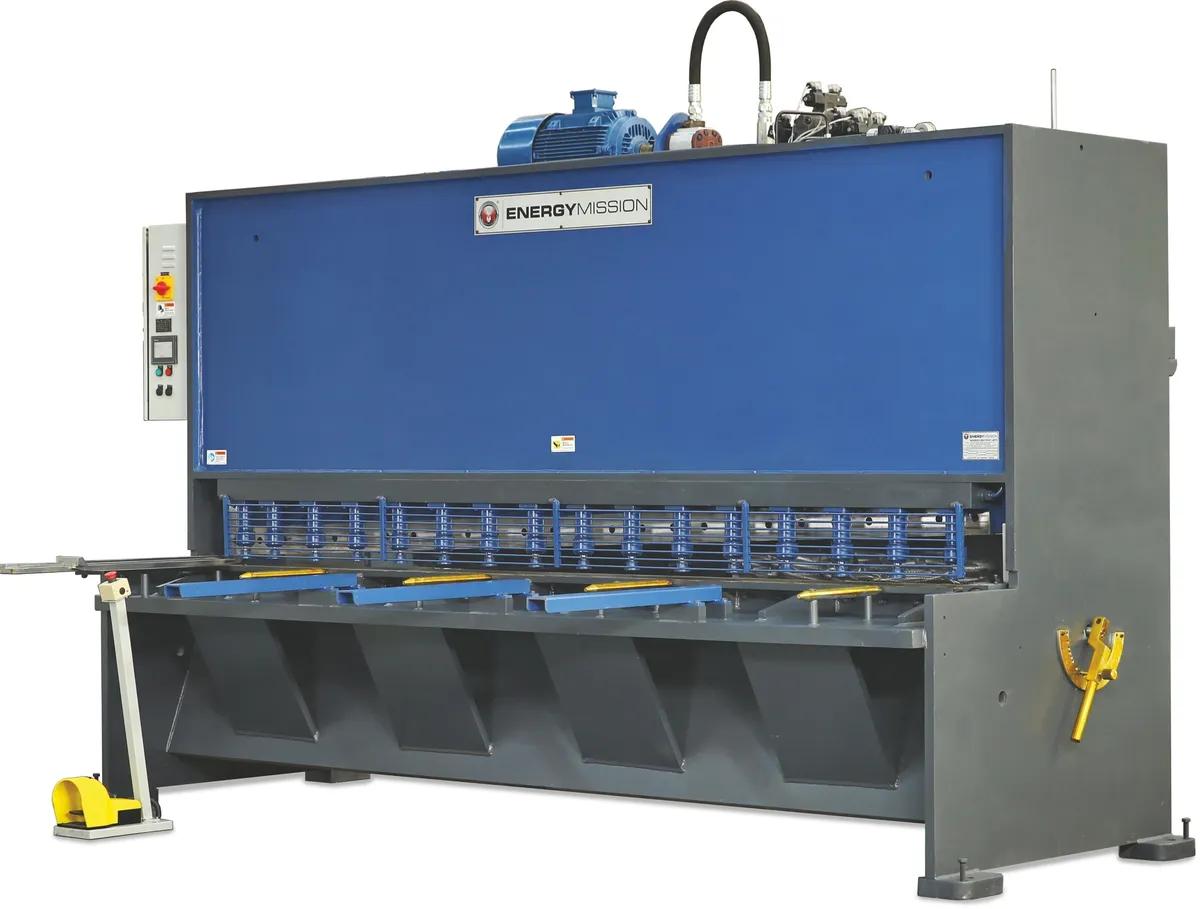

New ENERGY MISSION HVR 312 | Sheet Metal Shears
Have one to sell?
ConditionNew
New
RANGE | LENGTH
2 mm to 32 mm
1250 mm to 8000 mm
Capacity (MS - UTS 45 Kg/mm²) .12"/.16"
Capacity (SS - UTS 72 Kg/mm²) .08"/.12"
Shearing length 49"
Variable angle Range 0.5° - 2°
Number of strokes per minute 11 (@Max. Rake angle) - 16 (@Min. Rake angle)
Number of hold downs cylinders 7Nos
Working Height 31.5"
Motor Power 3Hp.
Length 90.5"
Width 78.7"
Height 78.7"
Oil Tank Capacity 90Liters
Oil Specification 68 grade Hyd. Oil
Blade size .5"x.2.4"x41"
Back Gauge Travel 23.6"
• Guillotine type hydraulically variable rake angle design
• Twist free & better cutting result in thin sheets at lower rake angle
• Cutting job accuracy as per DIN Standard
• Higher cutting capacity than rated capacity at higher rake angle
• The stable & robust structure from ultrasonically & tensile tested IS 2062 grade steel
• Rigid box type structure of ram & table with inclined member in direction of resultant force
• Hydraulic & electrical safety interlocks for overloading
• NC up-gradation possible
• Bolted type Square Box assembly for holding cylinder mounting.
• Special guided seal for holding cylinder to avoid leakage.
• All electrical & hydraulic component from reputed make
• Ram guided by six hardened & grounded guide rollers Suitable for upgradation with special optional features
