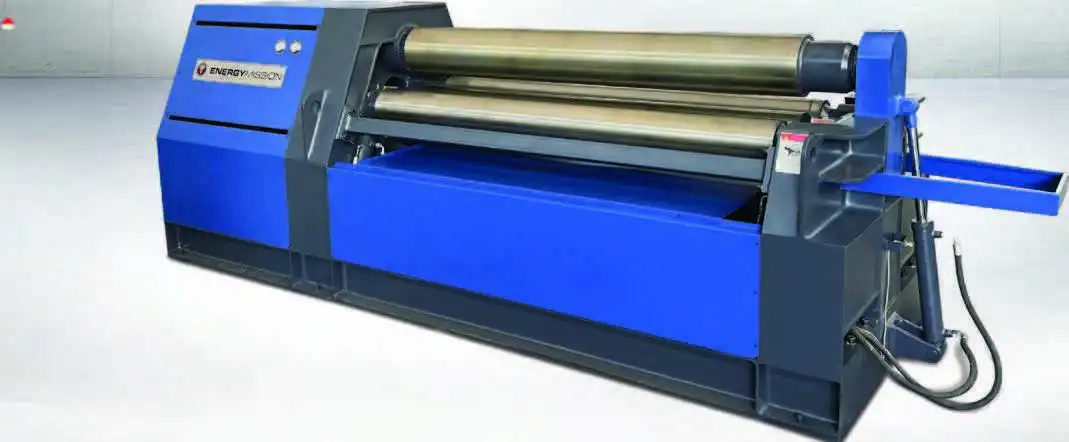

New ENERGY MISSION 4Rl PBM 1230 | Plate Rollers

Useful Length 10’
Bending Capacity 1/2”
Pre-Bending Capacity 5/16”
Motor 20HP
Top Roll Diameter 11”
Bottom Roll Diameter 11”
Side Roll Diameter 8.6”
Min. Diameter Pre-Bending Capacity 22”
Min. Diameter Bending Capacity 33”
Plate Rolling Speed 138 In/min
Overall Dimensions 220”x65”x63”

The capacities are based on Normal steel with yield point 260 N/mm². (2600 Kg/Cm²)
Remaining Straight end after pre-bending 1.5-2xplate thickness.
The min. bending diameter is 2xTop roll diameter, depending on plate thickness.
Max. Cone bending thickness capacity is 70% of pre-bending thickness.
Max. Cone bending width capacity is 2/3 x bending length.
NC / CNC can program each work piece, and manually adjust the diameter
deviation caused by the difference of material properties.
