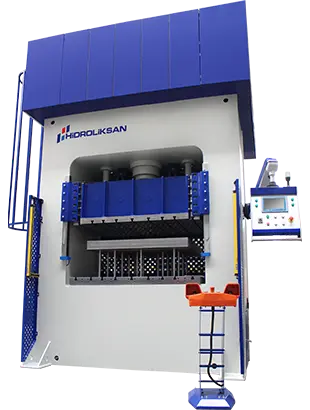

New HIDROLIKSAN HDD 500 | Presses/Busbar
Have one to sell?
ConditionNew
New
Hidroliksan H type Deep Drawing Presses, which are produced up to 3000 Tons capacity, can also be produced according to the customer's requirements. Preferred Deep Drawing presses for work requiring any kind of deep drawing can be supplied with the mold if desired. In addition, the ejector roller which is placed in the upper table for the works that require the ejector makes the product easier and quicker after the drawing process is finished.
High precision processed frame and table provide our customers to receive precise products in their production.
If required, Mold loading system or other mold installation solutions are recommended to install the mold.
*ADDITIONAL SIZES AVAILABLE UPON REQUEST
Capacity: 500 Metric Tons
Table Size: 1200x1500mm
Stroke: 1000 mm
Daylight: 1000 mm
Power: 30 kw
Pump: 116 Liters
Down Speed: 100mm/sec
Return Speed:140mm/sec
Working Speed: 10mm/sec
Standard Equipment
Chrome Plated Cylinder
Steel Welded Frame
HMI Touch Screen Control Panel
Safety Cover and Light Barrier
Two Hand Button Control
Adjustable Variable Pressure on HMI Touch Screen Control Panel
Adjustable Stroke on HMI Touch Screen Control Panel
Oil Pressure Gauge
Lubrication
Air Cooling
T-Slotted Table
User Manual
1 Year Warranty
Optional Equipments
Ejector Cylinder
Variable Speeds
Tool Loading Device
