*ADDITIONAL SIZES AVAILABLE UPON REQUEST*

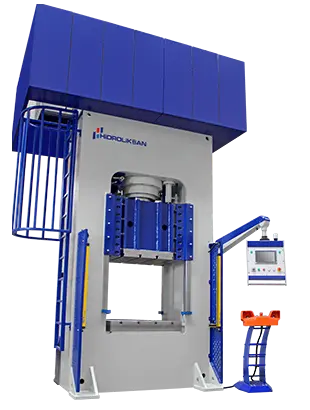

Hidroliksan H type presses produced up to 3000 Tons capacity can be produced according to the customer's requirements. H Type presses can be used to bend, shape, hole punch, cut and straighten according to the mold used. If required, mold loading devices or other mold installation solutions are recommended to install the mold.
High precision machined frame and tables allows you to receive precise products in your production
Capacity: 220 US Tons
Table Size: 800x1000mm
Stroke: 1000mm
Day light: 1000 mm
Motor Power: 22 kw
Pump: 48 liters
Down Speed: 100mm/s
Return Speed: 140mm/s
Working Speed:8mm/s
Dimensions: 2200x2100x4200mm
Weight: 8000 kg
Chrome Plated Cylinder
Steel Welded Frame
HMI Touch Screen Control Panel
Safeyt Cover and Light Barrier
Two Hand Button Control
Adjustable Variable Pressure on HMI Touch Screen Control Panel
Adjustable Stroke on HMI Touch Screen Control Panel
Oil Pressure Gauge
Lubrication
Air Cooling
T-Slotted Table
User Manual
1 Year Warranty
