New HIDROLIKSAN CFSS 100 | Presses/Busbar
Have one to sell?
ConditionNew
New
*ADDITIONAL SIZES AVAILABLE UPON REQUEST

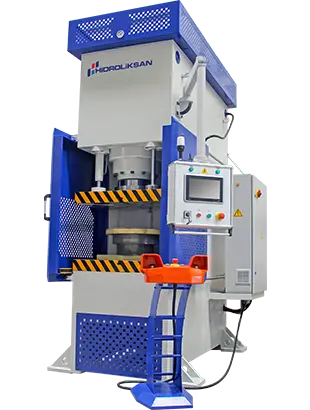

C FRAME SINGLE ACTION PRESSES
Produced up to 250 Ton capacity, Hidroliksan C type Presses are normally of standard size, yet can be produced according to customer requirements. C type presses can be used to bend, hole punch, cut and straightening according to the mold used. Since the 3 sides are open, mold mounting and disassembly can be done easily. C type presses, which are preferred for users who work with smaller molds, are produced to be automatic and manual.
Capacity: 100 metric Tons
Table size: 800x500mm
Stroke: 400mm
Daylight: 500mm
Motor: 11 kw
Pump:26 liters
Chrome Plated Cylinder
Steel Welded Frame
HMI Touch Screen Control Panel
Safeyt Cover and Light Barrier
Two Hand Button Control
Adjustable Variable Pressure on HMI Touch Screen Control Panel
Adjustable Stroke on HMI Touch Screen Control Panel
Adjustable Variable Speed on HMI Touch Screen Control Panel
Oil Pressure Gauge
Air Cooling
T-Slotted Table
User Manual
1 Year Warranty
