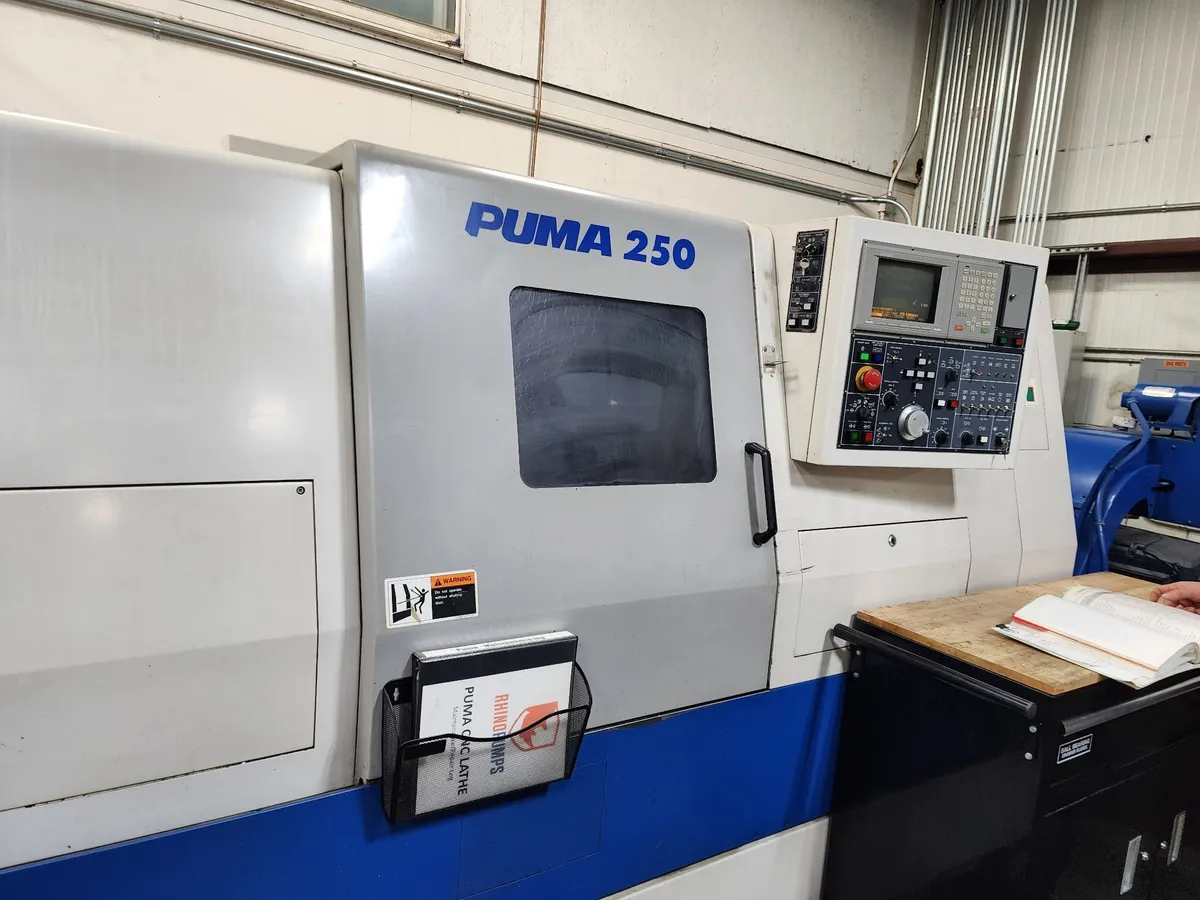

Used 1998 DAEWOO PUMA 250B | CNC Lathes

Swing Over Bed:22.44"
Swing Over Saddle:14.57"
Recommended Machining Diameter:10"
Maximum Machining Diameter:15.75"
Maximum Work Length:25.6"
Draw Tube Diameter:3.03"
X - Axis Travel:11.10" (3.23" + 7.87")
Z - Axis Travel:26.77"
Cutting Feed Rates, X, Z:787, 944 IPM
Rapid Traverse Rate, X, Z:1968 IPM
Spindle Speeds:35 - 3500 RPM
Spindle Nose Taper:A2-8
Spindle Bore Diameter:3.54"
Number of Positions on Turret:10
Tool Indexing Time:.2 Seconds
Tailstock Quill Diameter:3.94"
Quill Bore Taper:#5 MT
Quill Travel:3.94"
Machine Dimensions:170" x 66" x 72" High
Machine Weight, Approx.:12,500 Lbs.
