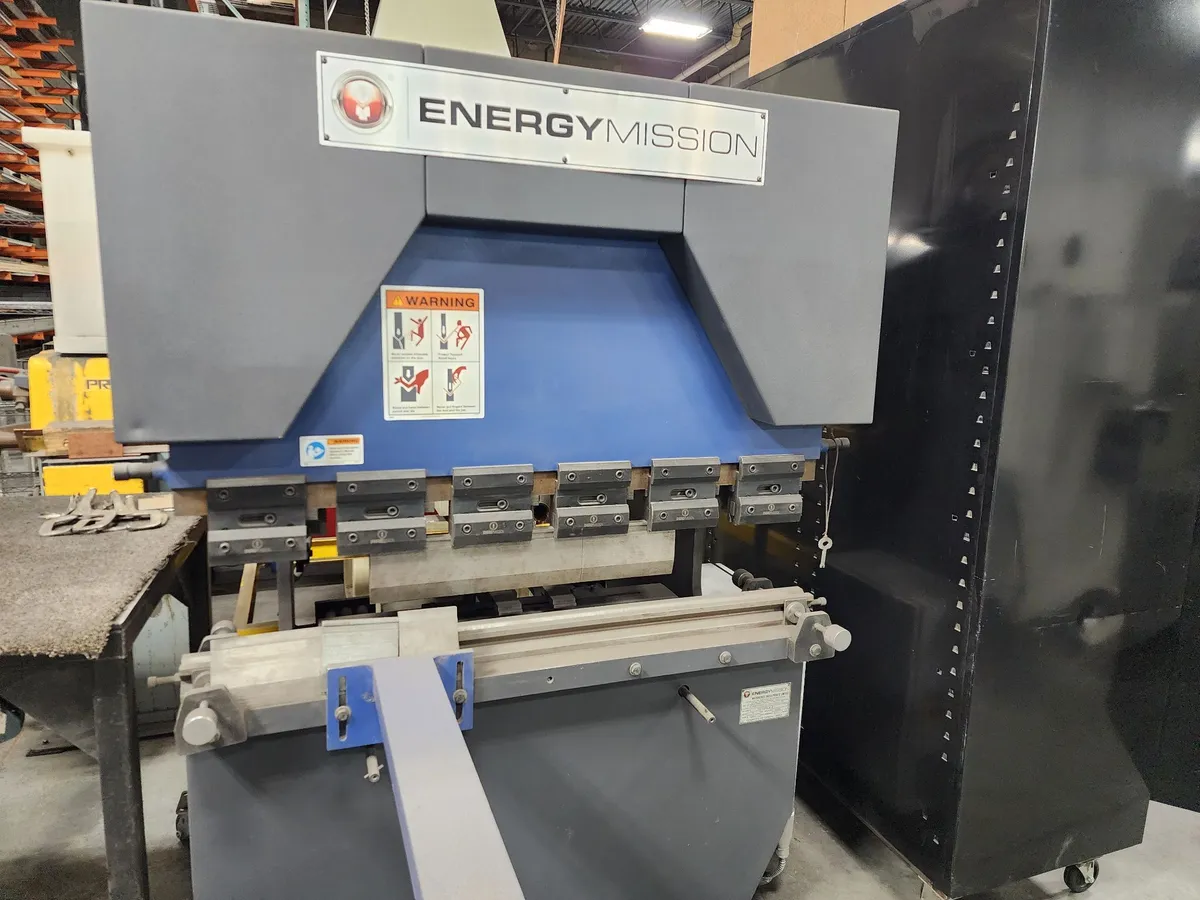

Used BMT EM PBR 0412 Hydraulic Press Brake
Have one to sell?
ConditionUsed
1 available
Used BMT EM PBR 0412 Hydraulic Press Brake
SPECIFICATIONS
Control: CybTouch 8
CNC Control Back Gauge.
Manual controlled Ram.
Tonnage 44-Tons
Bending Length 4’
Table Width 7”
Clear pass 3’
Ram Stroke 4”
Open Height 9.8”
Throat Depth 7.8”
Motor 5 HP
Packing Dimensions (LxWxH) 62”X45”X75”
Weight 3700 LBS
PRICING
BMT NC PBR 0412
Manual Y-Axis By Limit Switches Included
Manual back gauge Included
Moveable workstation with pair of foot switches Included
One suitable 4-way die and punch Included
Centralized lubrication with hand pump Included
Pair of Sheet Supports Included
Tonnage 40 MT
Table Length 4’
Bending Capacity .16”x4’
Table Width 7”
Clear pass 35”
Ram Stroke 3.9”
Open Height 8.3”
Throat Depth 7.8”
Back gauge 15.7”
Horse Power 5
Approach Speed 2.16”/sec
Pressing Speed .28”/sec
Return Speed 2”/sec
Electric Control Panel with Selection of Auto, Inch & Single Cycle Auto
Movable Workstation with Foot Switch
Front Operated Manual Back-Gauge 600mm with Micro-Setting
One Suitable Five Way Punch
One Suitable Five Way Die
Centralized Lubrication System with Hand Pump
Main Drive Motor
Fine Stroke Adjustment Rod with Limit Switch
Pair of Lifting Links
Pair of Sheet Support
Used BMT EM PBR 0412 Hydraulic Press Brake
SPECIFICATIONS
Control: CybTouch 8
CNC Control Back Gauge.
Manual controlled Ram.
Tonnage 44-Tons
Bending Length 4’
Table Width 7”
Clear pass 3’
Ram Stroke 4”
Open Height 9.8”
Throat Depth 7.8”
Motor 5 HP
Packing Dimensions (LxWxH) 62”X45”X75”
Weight 3700 LBS
PRICING
BMT NC PBR 0412
Manual Y-Axis By Limit Switches Included
Manual back gauge Included
Moveable workstation with pair of foot switches Included
One suitable 4-way die and punch Included
Centralized lubrication with hand pump Included
Pair of Sheet Supports Included
Tonnage 40 MT
Table Length 4’
Bending Capacity .16”x4’
Table Width 7”
Clear pass 35”
Ram Stroke 3.9”
Open Height 8.3”
Throat Depth 7.8”
Back gauge 15.7”
Horse Power 5
Approach Speed 2.16”/sec
Pressing Speed .28”/sec
Return Speed 2”/sec
Electric Control Panel with Selection of Auto, Inch & Single Cycle Auto
Movable Workstation with Foot Switch
Front Operated Manual Back-Gauge 600mm with Micro-Setting
One Suitable Five Way Punch
One Suitable Five Way Die
Centralized Lubrication System with Hand Pump
Main Drive Motor
Fine Stroke Adjustment Rod with Limit Switch
Pair of Lifting Links
Pair of Sheet Support
