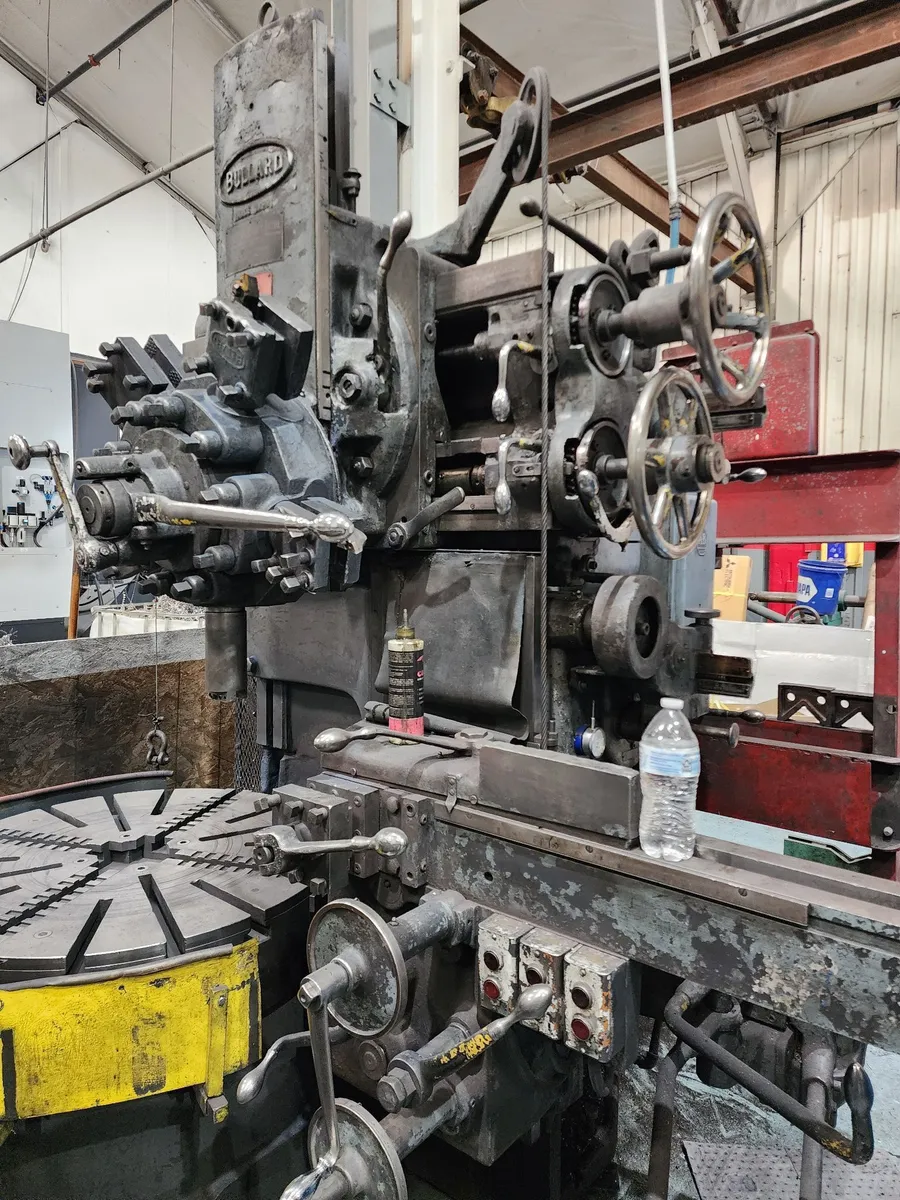

Used BULLARD 33 | Vertical Boring Mills (incld VTL)
Have one to sell?
ConditionUsed
1 available
Table Speeds: 8.2 to 100 RPM
Max. Swing Side Head Below Table: 35’’
Max. Swing Side Head Working Position: 37’’
Turret Head Swivels: 30 Degrees Left & Right
Manual 4-Jaw Chuck: 33’’ Diameter
Max. Distance Table to Rail: 30"
Max. Distance Table to Face of Turret: 38’’
Travel of Head on Rail: 38’’ Left & Right
Tool Turret Tool Holes: 2-3/4" Diameter
Max. Turret Head Vertical Stroke: 24’’
Side Head Horizontal Travel: 19"
Side Head Vertical Travel: 28’’
Feeds: .0006" to .125"IPR
