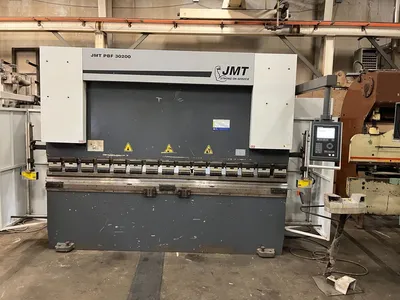

Capacity Length x Tons 10' x 220
Ram Repeatability Inch +/- .0004
Programmable Ram Tilt
Programmable Ram Approach Speed (maximum) 236"
Programmable Ram Working Speed (maximum) 16"
Programmable Ram Returm Speed (maximum) 172"
Box Forming Universal Wedge Clamp Height 4.7"
X Axis Back Gauge Speed IPM: 189
X Axis Back Gauge Travel: 24.4"
DIMENSIONS
Overall Bending Length (A) Inch 120
Distance Between Sideframes (B) Inch 100
Stroke (C) Inch 8.1
Daylight (D) Inch 17.5
Throat Depth (E) Inch 9.8
Table Height (F) Inch 34.6
Table Width (G) Inch 4.1
Overall Height (H) Inch 106
Overall Length (L) Inch 177
Overall Width (W) Inch 59
Approximate Weight LBS 18,964
Oil Capacity Gallons 40
Maın Motor HP 20
Full Load Amps (3 phase) 230/460 52/27
Delem DA-52s Control
