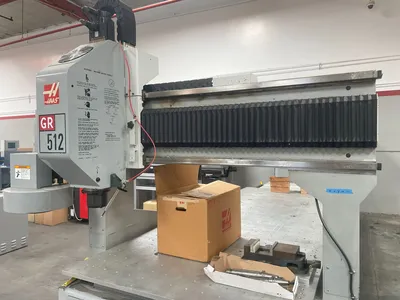

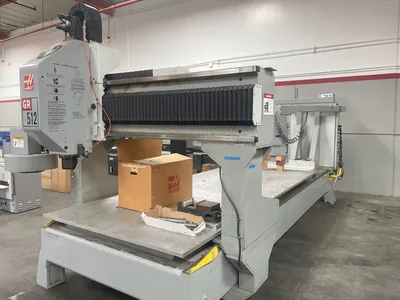

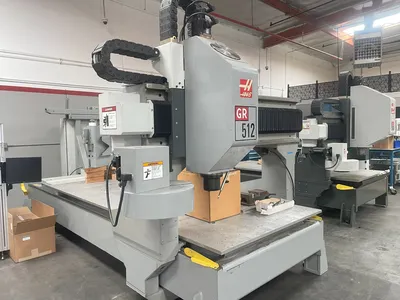

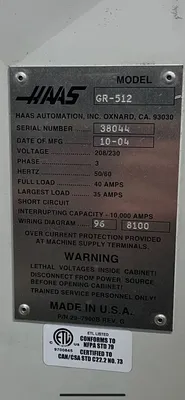

2004 HAAS GR-512

Travels:
X Axis 145″
Y Axis 61″
Z Axis – 11″
Spindle Nose to Table (Max.) 13.5″
Spindle Nose to Table (Min.) 2.5″

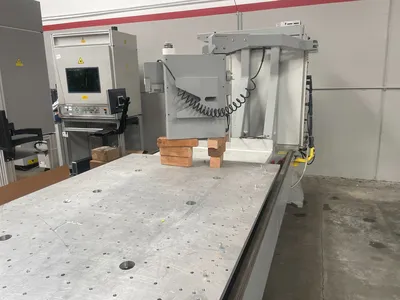

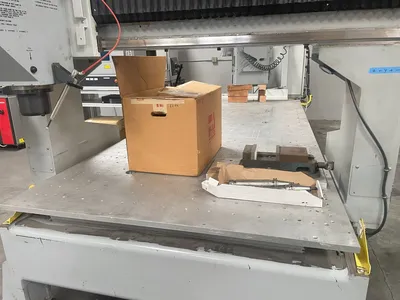

Table:
Length 144″
Width 72″
Thickness 1″
Between Columns 62″
Max. weight on table (evenly distributed) 6,000 lbs

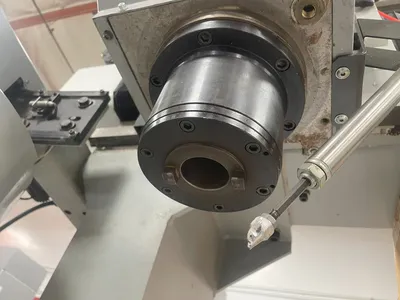

Spindle:
Max. Rating 15 HP
Max. Speed 15,000 RPM
Max. Torque 17 ft-lb @ 4,600 RPM
Drive System (Direct Speed) Belt Drive
Taper CT 40

FeedRates:
Rapids on X 800 in/min
Rapids on Y 2100 in/min
Rapids on Z 1100 in/min
Max. Cutting 800 in/min

Axis Motors:
Max. Thrust X 2520 Lb
Max. Thrust Y 1020 Lb
Max. Thrust Z 2050 Lb

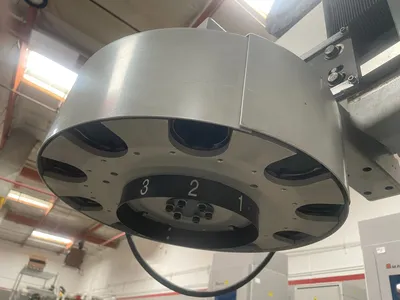

Tool Changer:
Carousel Type
Capacity 20
Max. Tool Diameter (Full) 3.5″
Max. Tool Weight 12 Lb
