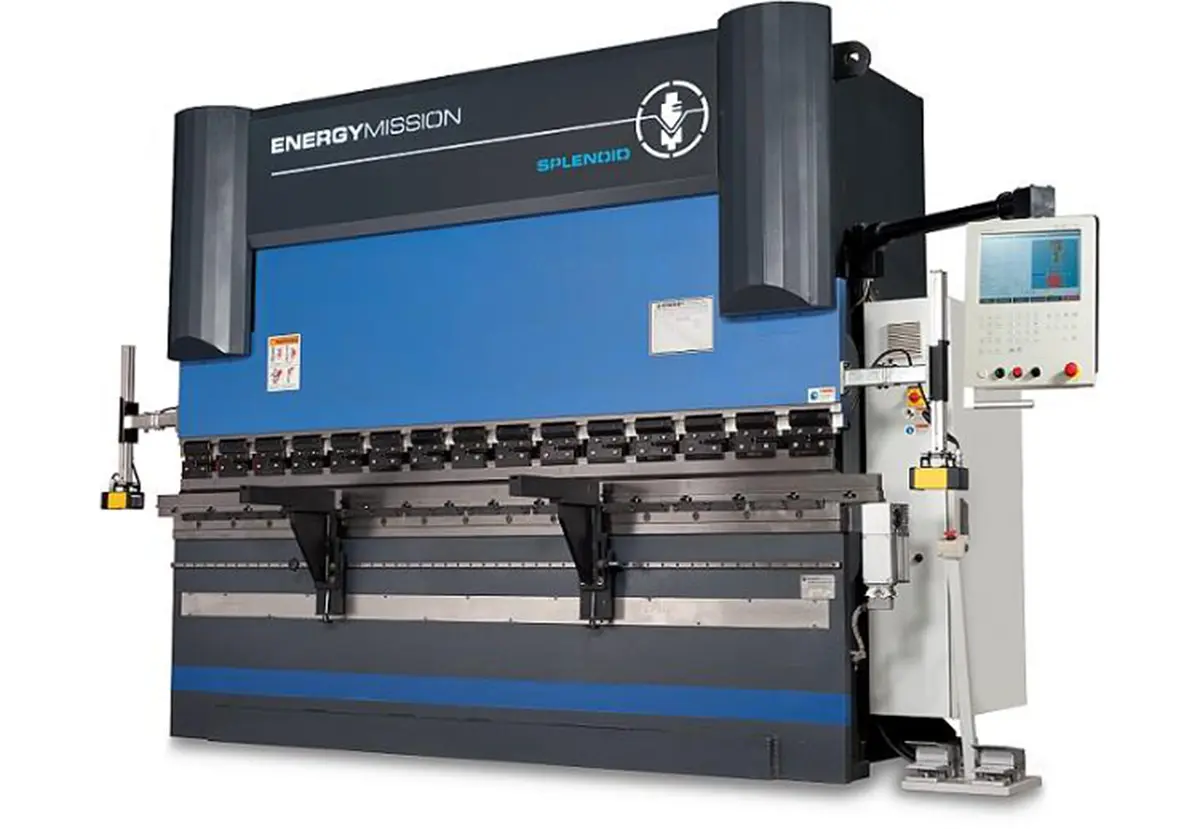

SPLENDID series CNC Press Brake
(7 Axis - Y1, Y2, X, R, Z1, Z2 & Automatic Crowning)
Bending Tons 88
Bending Length 8’
Table Size 3.54” x 8’
Table Height 33.5”
Clear Pass. 80.71”
Ram Strokes 7.87”
Open Height 15.16”
Throat Depth 10”
X-Axis Travel 23.6”
Approach Speed 6”/sec
Pressing Speed .4”/sec
Return Speed 6”/sec
Dimensions 102”H x 55.12”W x 108”L
Weight 13,781 lbs
With Cybelec Visi Touch Controller
Wila upper tool hydraulics
Servo Drive Motor for Hydraulic Power Pack
Front Cylinder Design
Selection of Auto, Inch & Single Cycle Auto thru screen
Servo Hydraulics from Atos/Hawe for Y1-Y2 control
Linear guided type press brake scale for Y1-Y2 axis position measurement
AC servo drive for X axis control
Back gauge assembly incldued ball screw drive unit, rotary encoder & LM guides
Sliding sheet support (2 Nos Mounted on L.M. Guides
