Sold

SCOTCHMAN 314T

Ironworkers
Manufacturer:
SCOTCHMAN
Model:
314T
Stock #:
1916
Serial #:
4531
Country:
United States

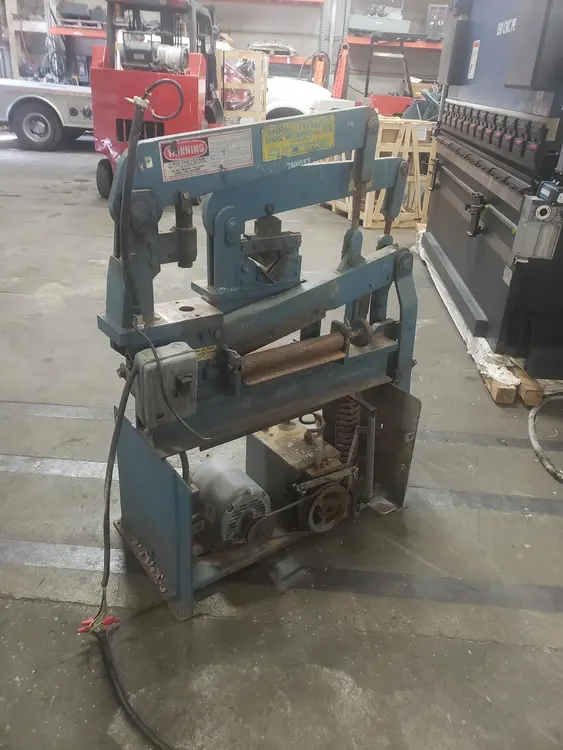

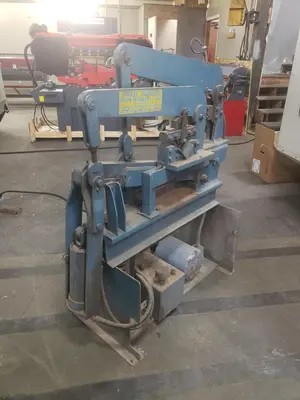

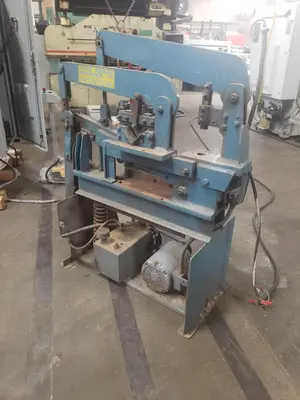

The Scotchman 314 ironworker is a 35-ton hydraulic machine with a 4-inch throat depth. It can punch, shear, and notch various materials, including angles, bars, and rounds. The machine features a 3 HP motor and a 14-inch shear blade length.

Punch Capacity: Up to 7/8" diameter through 1/2" mild steel, or 1-1/4" through 1/4" mild steel.
Bar Shear Capacity: 3/4" x 6", 1/4" x 10", or 3/16" x 12".
Angle Shear Capacity: 3" x 3" x 1/4" angle iron, with a 2" x 2" x 1/4" capacity for miter cuts at 45 degrees.
Round Capacity: 3/4".
Square Capacity: 3/4".
Throat Depth: 4 inches.
Motor: 3 HP, 220V, 3-phase.
Blade Length: 7" or 14"
