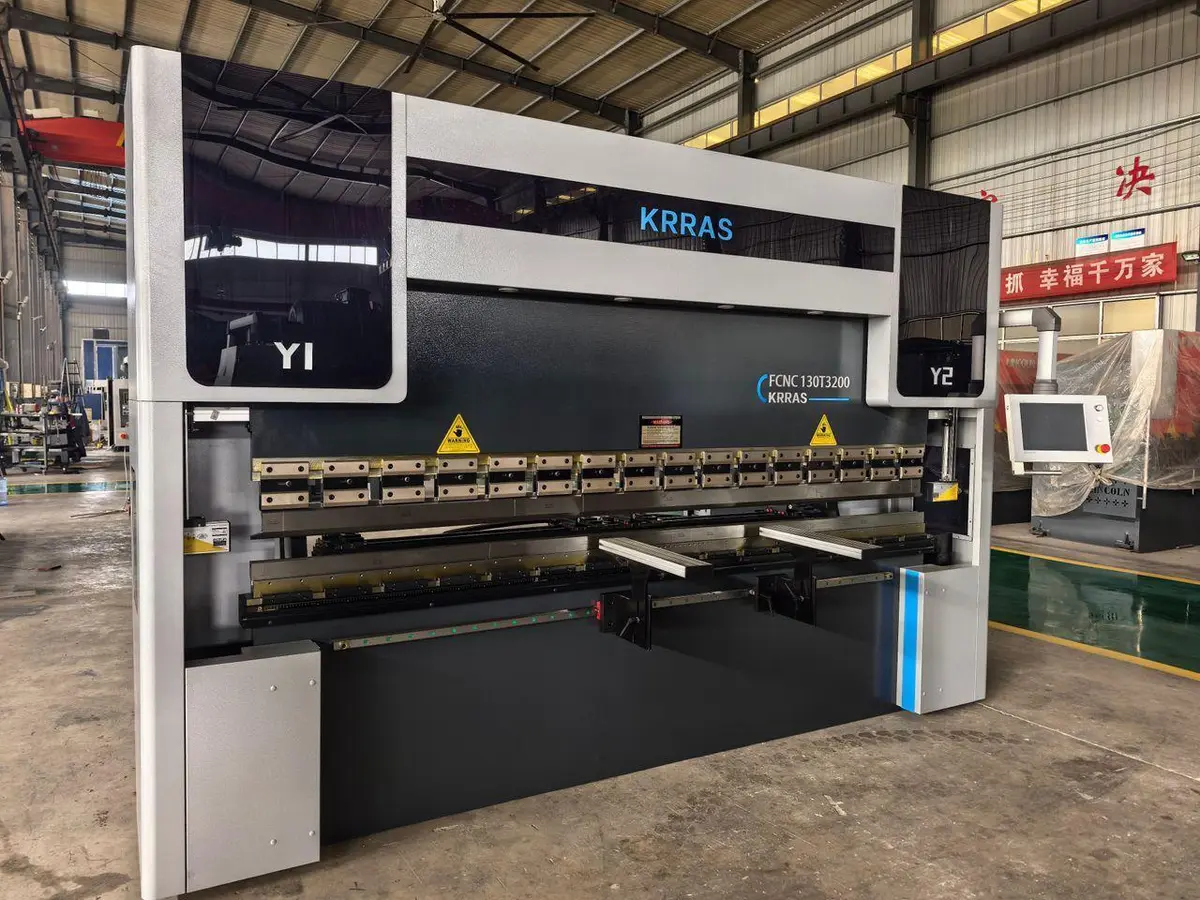

New KRRAS FCNC 130T3200 | CNC

Description

MACHINE DIMENSIONS
Tons US 143
Overall Bending Length (A) Ft/Inch 10.5
Distance Between Sideframes (B) Ft/Inch 9.5
Stroke (C) Inch 7.87
Daylight (D) Inch 17.12
Throat Depth (E) Inch 15.74”
Table Height (F) Inch 40.9
Table Width (G) Inch 12
Overall Height (H) Ft/Inch 8.7’
Overall Length (L) Ft/Inch 12’
Overall Width (W) Ft/Inch 5.5’
Approximate Weight LBS 20,000.00
Oil Capacity Gallons 105
Maın Motor HP 15
Full Load Amps (3 phase) 460 V 40 A
SPECIFICATIONS
Capacity Length x Tons 10.5’ x 143 ton
Ram Repeatability Inch ± 0.0004
Programmable Ram Tilt Yes
Programmable Ram Approach Speed (maximum) IPM 236
Programmable Ram Working Speed (maximum) IPM 19
Programmable Ram Returm Speed (maximum) IPM 189
Box Forming Universal Wedge Clamp Height Inch 5.9
X Axis Back Gauge Speed IPM 827
X Axis Back Gauge Travel (Front to Back) Inch 29.5
R Axis Back Gauge Speed IPM 709
R Axis Back Gauge Travel (Height) Inch 9.8
Z Axis Back Gauge Speed ( 4/6 Axis) IPM 2124 / 1181
MACHINE PRICING
Standard Configuration (Y1, Y2/X/R/Motorized Crowning) $95,325.00
Y1,Y2 Closed Loop Ram Positioning Included
CybTouch 15 PS Included
Servo CNC Controlled X/R Axis Back Gauge Included
Universal Box Forming Punch Clamp Included
CNC Controlled Crowning Table Included
Front covers and rear guarding Included
Sliding Front Sheet Supports with Linear Rail Included
Dual Palm/Foot Station w/Selector Switch Included
Options
X=650mm X,R,Z1,Z2 (AL)*** Servo Back Gauge (+ 2 Extra Manual Z-finders) Included
Krras Goosneck Top tool Included
Krras With Die Holder and Bottom Tool Included
Fiessler Laser Safety Included

Total: $95,325.00
COMPLETE OPTIONS LIST AVAILABLE UPON REQUEST
TERMS / CONDITIONS / DELIVERY / WARRANTY

F.O.B. POINT
Will Advise

DELIVERY
Coming in for stock, will advise
PAYMENT TERMS & CONDITIONS
• Sales tax is excluded unless otherwise stated.
• With credit approval:
• Non-Stock Machines: 30% with order, 60% prior to shipment from our factory, 10% upon installation.
Stock Machines: 100% with order.
• Custom orders and special payment terms will vary.
• Prices do not include overland freight and handling.
• Quoted prices are valid for thirty days from date on quote.
• JMT Standard Terms and Conditions apply to all orders.
WARRANTY
Price includes a twelve-month warranty for defective parts. Warranty covers only the parts; any associated labor costs will be the responsibility of the owner. This warranty is subject to normal use and maintenance. For small adjustments and repairs, the customer may be expected to resolve with phone assistance, if needed, from an authorized BMT technician.
POINT OF OPERATION GUARDING
Point of operation guarding is the responsibility of the machine owner/user
per OSHA Federal Regulation Volume 37-# 202-dated 10/18/72.

INSTALLATION
The customer is responsible for machine placement, providing electrical power to the electrical cabinet of the machine. If air is required, it should also be connected. The machine must be cleaned and all shipping protective products removed prior to arrival of the service engineer. If tooling is required for the operation of your machine, this must also be made available prior to engineer’s arrival. Customer is also responsible for anchoring of the machine.
ELECTRICAL
All machines are setup for 220/460/3Phase/60 Hz. Please specify which you need with the order. If supply voltage varies more than ±8% from the above, electrical component damage can occur. In this case, the components would not be covered under warranty.
