Used DMC PDG 5-3 PLC | Punch & Die Grinders

Description

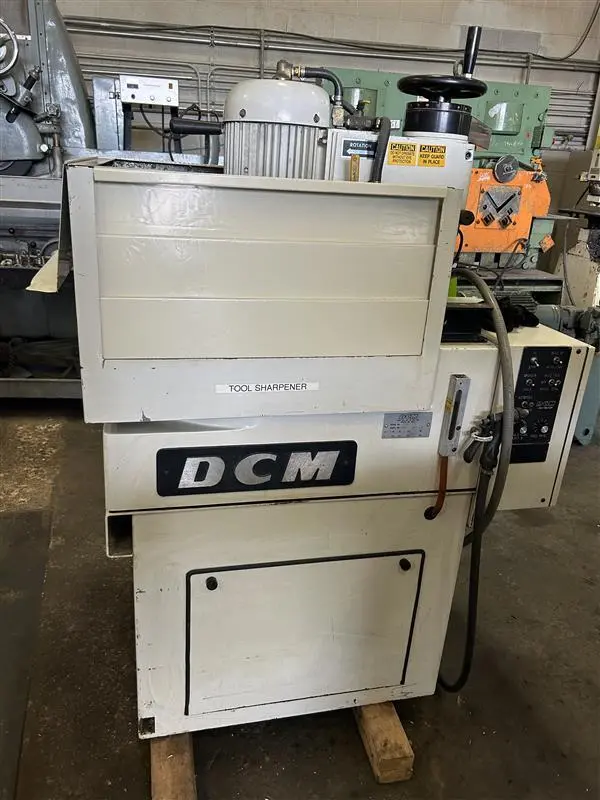

Punch and Die Grinder DCM PDG-5-3 PLC

SPECIFICATIONS:
T-Slot Rotary Table:
– Diameter…………18″
– T-Slots…………6
– Speed…………20 RPM
– Motor…………1/2 HP
– Distance from Top to Grind Wheel – Maximum…………10″
Spindle:
– Speed…………3,600 RPM
– Motor…………5 HP
– Autofeed Rate – Infinitely Variable…………0.0005 – 0.020 IPM
– Manual Handwheel Graduations…………0.001″
Grinding Wheels:
– Cup Wheel Type…………6 or 11
– Size…………6″ OD
– Spindle Hole…………1-1/4″
Workholding:
– Tilt Angle…………0 – 10 Deg.
– 3-Jaw Chuck…………6-1/2″
– Permanent Magnet Chuck…………7″ x 4″
Dimensions – Actual………….42″ x 36″ x 64″(H)
Weight – Catalog…………1,500 Lbs.
