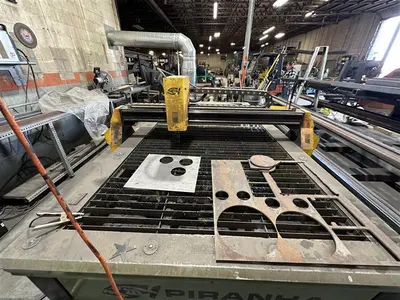

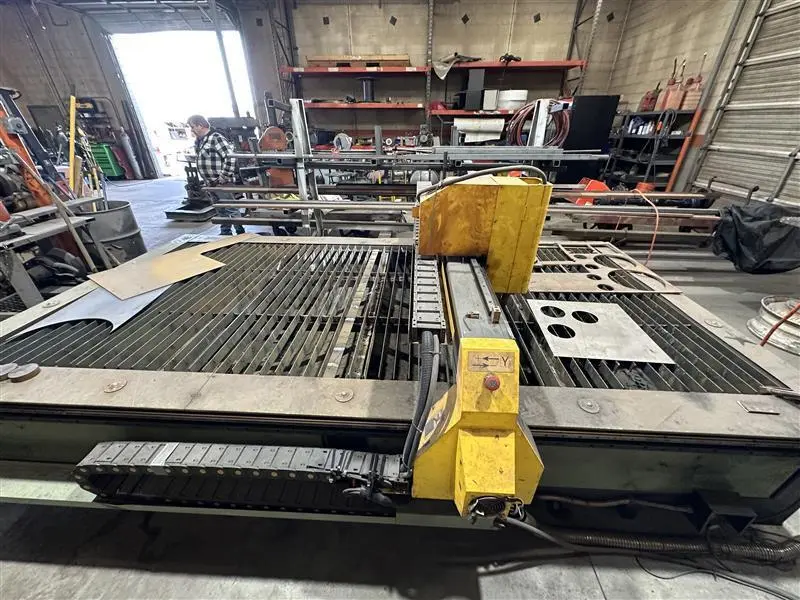

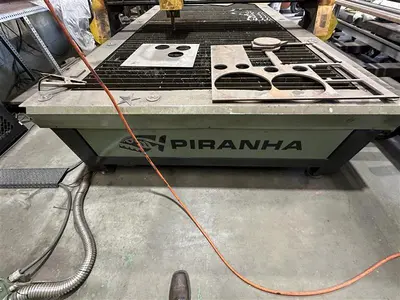

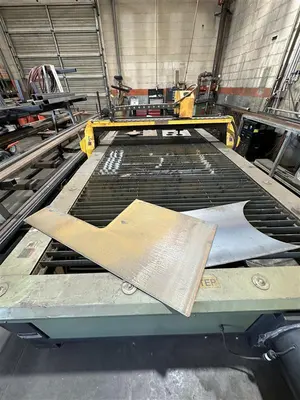

Piranha C510

Description

Machine Specifications
Maximum Rapid Speed: 314 IPM

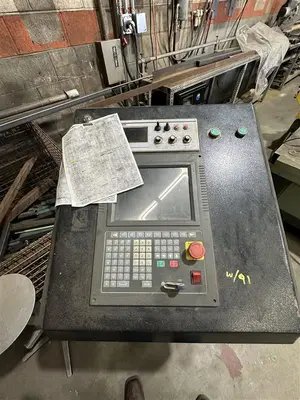

CNC Control: PC Based Control
Frame and Bridge Construction: Welded Tubular Steel
Drive Motors: X-axis – Two Servo Motors
Y-axis – Servo Motor

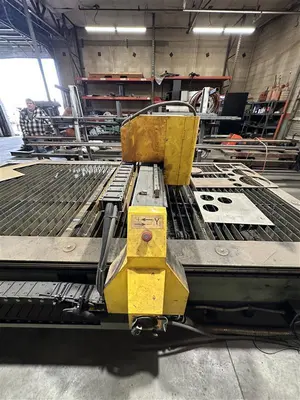

Torch Height Control – Stepper Motor
Drive System: X-axis – Rack and Pinion each side
Y-axis – Rack and Pinion
Z-axis – Ball Screw
Torch Control: Arc Voltage with Initial Height Sensing
Torch Protection: Pneumatic Breakaway
Exhaust Fan: 6500 cfm @ 3” H2O

INCLUDED FEATURES
Rugged Construction – All-Welded Steel Frame (not bolt-together) with high accuracy linear guides and bearings. Machine is assembled complete at the factory
Dual Side Drive – gantry driven on both sides for maximum stability
CNC Control (PC) – software download included
Panasonic servo motors and drives – Powerful 400 watt servo motors (not stepper motors) on both X-axis and Y-axis with a maximum traverse speed of 8000mm/min.
Down draft exhaust system – Pre-vented duct work with exhaust fan for plasma dust extraction – no messy sludge to clean out and dispose of.
Breakaway Torch Mounting – protects the torch from inadvertent part tip-ups
