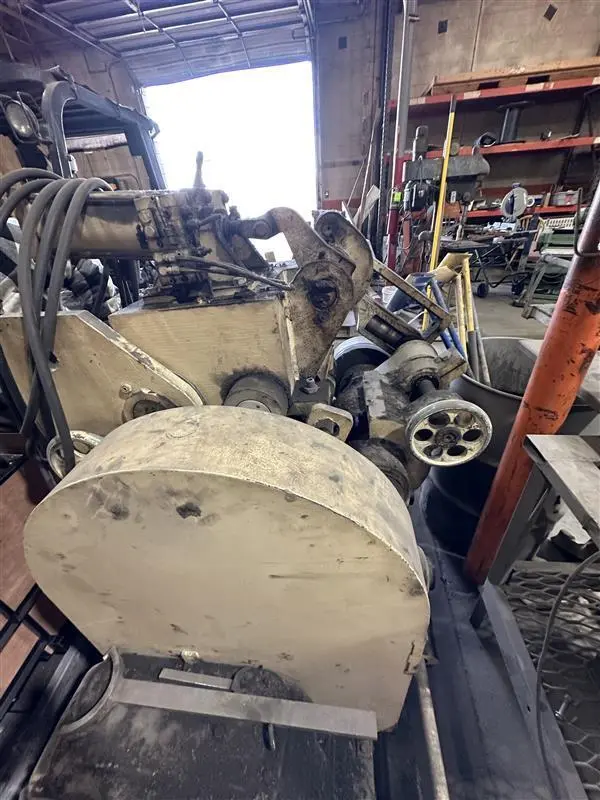

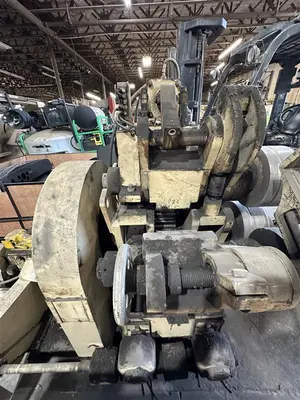

HENDLEY BELOIT VERTICAL ANGLE BENDING ROLLS
Size 20-B, Serial Number 16701
SPECIFICATIONS
ANGLES LEG OUT 3" x 3" x 3/8"
Minimum Diameter 24"
Smallest Angle 1½" x 1½" x 3/16"
Minimum Diameter 13"
ANGLES LEG IN 2½ " x 2½" x 3/8"
Minimum Diameter 30"
Smallest Angle 1½" x 1½" x 3/16"
Minimum Diameter 14"
CENTERS LOWER ROLLS 12"

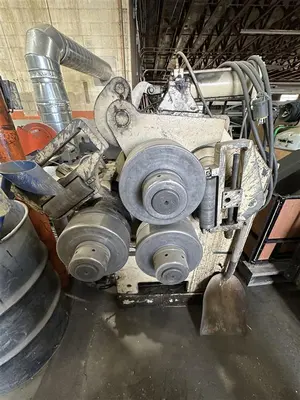

ANGLE ROLLS: 3" width x 10" diameter

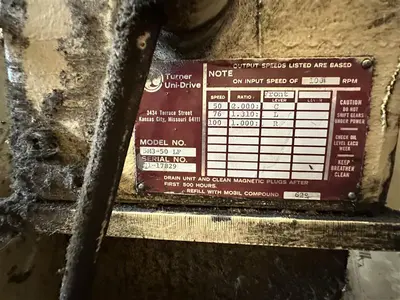

R.P.M. ROLLS: Four Speeds thru Gear Box
Ratio: 1st 4.00, 2nd 2.00, 3rd 1.33, 4th 1 to 1
DIAMETER UPPER SHAFT 3"
DIAMETER LOWER SHAFT 3"
EQUIPPED WITH:
Top Roll Power Adjustment in/out by pneumatic cylinder.
Bottom and Initial Rolls adjusted by motor drive with electric brake.
Leg in/Out Attachment.

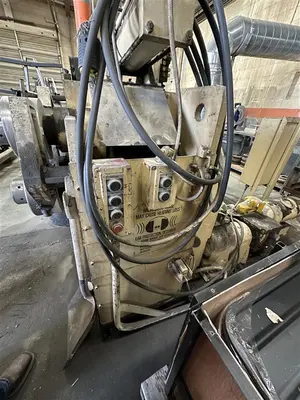

OPERATORS CONTROL: Wired low voltage
Stop Buttons.
Forward/Reverse Buttons.
Jog/Run Switch. Up/Down Roll Button.
Pneumatic Top Roll Lift Lever.
Foot Start Stop Control.

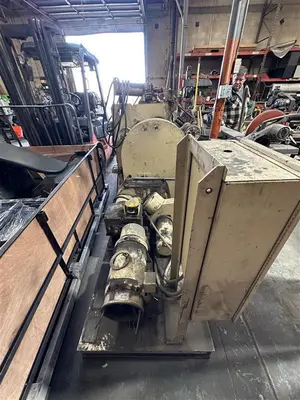

MOTOR DRIVES: Wired 440 volts, 3 phase
Both motors equipped with Electric Brake.
Main Drive 10 H.P. 220/440 volts
Roll Adjustment 2 H.P. 220/440 volts.
COMPLETE FACTORY SAFETY GUARDS
