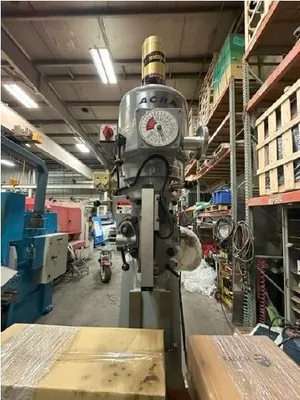

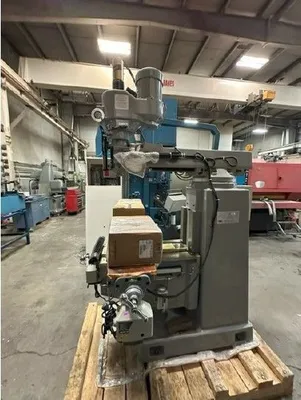

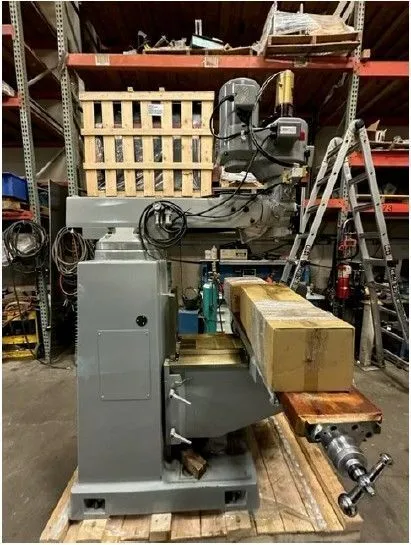

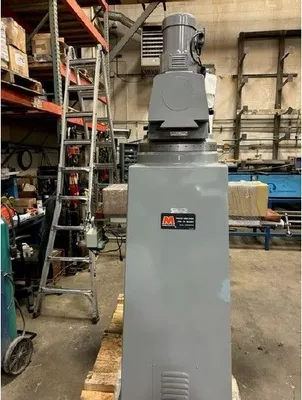

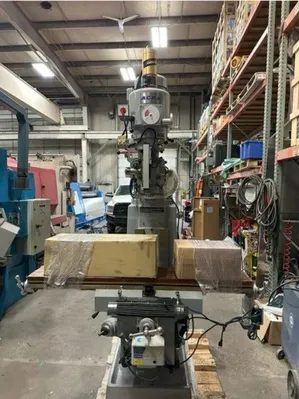

Acra LCTM1

Description

Specifications:
Table Size: 10″ X 54″
T-Slots: 3 x 0.625″ x 2.5″
X Axis Travels: 39″
Y Axis Travels: 16.3″
Z Axis Travels (Quill): 5″
Main Motor: 3 HP
Ram Travel: 18.5″
Knee Travel: 15.3″
Throat Distance: 9.6″ ~ 28.1″
Spindle to Table Top: 5.31″ ~ 20.7″
Spindle Nose: R-8 or #30 NST
Spindle RPM: 60 – 4,500 RPM
Quill Feeds: 0.0016″/0.0031″/0.0063″
Voltage: 230/460V AC ~ 3 PH
Standard Equipment:
Quill Heat Treated, Hardened & Chromed
One Shot Lubrication
Emergency Stop
Meehanite Casting
Dual Cooling Fans Stock Machine

Includes:
Maxi-Torque Power Draw Bar
X Power Feed
Y Power Feed
Fagor 400I Y,Z Power Feed
