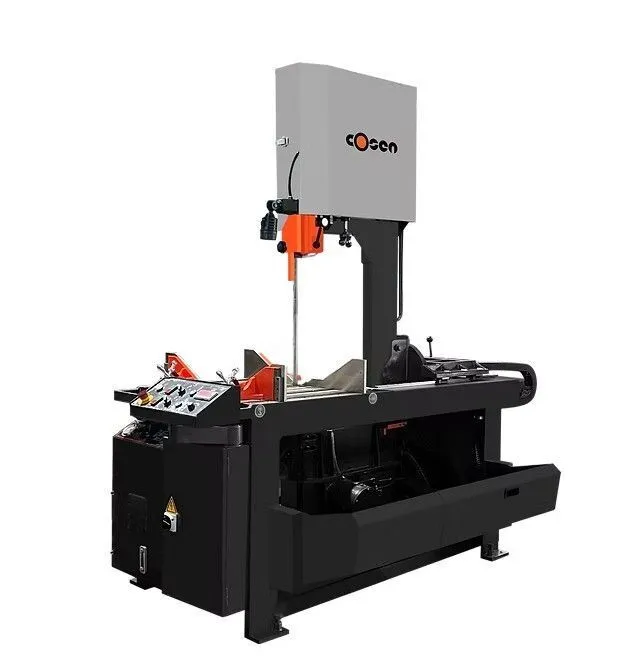

Cosan V-1822 Vertical Metal Band Saw
Have one to sell?
ConditionNew
1 available
New
VERTICAL TILT-FRAME SERIES BAND SAWS
Cosen offers a full line of vertical tilt-frame band saws in both semi-automatic and fully automatic styles, and offer machines in a variety of cutting capacities. All of Cosen's tilt-frame saws are built on a heavy duty saw frame and are designed to help reduce vibration during the cut and improve cutting performance. Each saw comes with the capability of cutting angles between 90° (straight cut) and 60° in both directions. All saws in the Tilt-Frame series also come standard with an automatic angle adjust built into the HMI to help make the cutting process simpler. Cosen's Vertical Tilt-Frame saws are excellent options for any fabrication production shop looking to make a transition into the vertical saw market.
Capacity Angle 0° 45° Left 60° Left 45° Right 60° Right
Capacity (0° Blade Cant) 18" x 22" 18" x 15.15" 18" x 9.76" 18" x 14.84" 18" x 9.21"
Capacity (5° Blade Cant) 18" x 20.15" 18" x 13.46" 18" x 8.66" 18" x 13.18" 18" x 8.38"
Blade Speed Variable Speed
Blade Size (LxWxT) 15' 5" x 1.25" x .042"
Blade Motor 5 HP
Coolant Motor 1/8 HP
Coolant Tank Capacity 11.88 gal
Hydraulic Tank Capacity 2.24 gal
Workbed Height 37.4"
Weight 2,480 lbs
Floorspace (LxWxH) 108.9" x 106.2" x 95"
