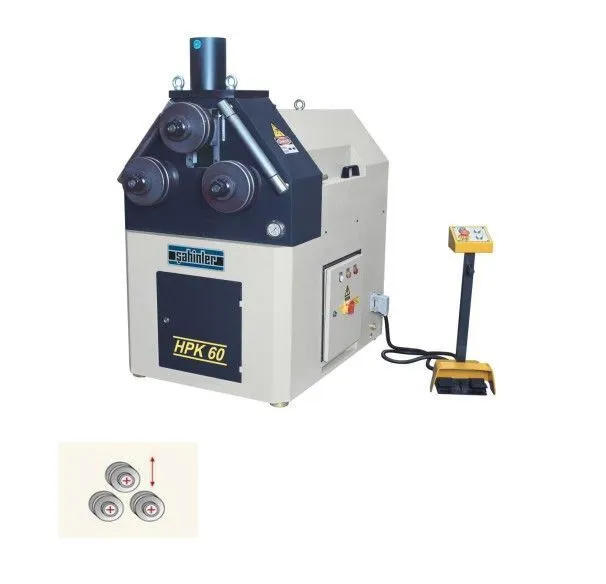

HPK 60 GYDRAULIC PIPE AND SECTION ROLLER MACHINE
Have one to sell?
ConditionUsed
1 available
Standard Equipment :
❑ Steel Welded Construction Frame
❑ 3 Rolls are Powered
❑ Horizontal and Vertical Working Position
❑ Mobile Control Panel
❑ Top roll hydraulic movable
❑ Guide rolls
❑ Brake motor
❑ Standard Rolls
❑ Hardened Shafts from Special steel
❑ User’s Manual in English
Technical Information:
❑ Top-Shaft Diameter : Ø 60 mm
❑ Rolls Diameters : Ø 215 mm
❑ Hydraulic Power : 16 ton
❑ Working Speed : 4 m/min
❑ Motor Power : 1,5 kW
❑ Weight (approx) : 950 kg
❑ Dimensions : 1000 x 1400 x 1650 (L x W x H)
❑ Power Supply : 380V /3Ph / 50 Hz OR on request
