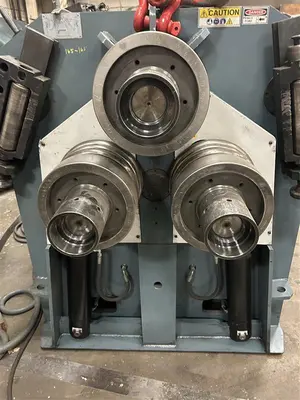

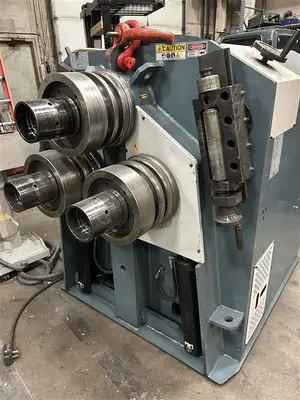

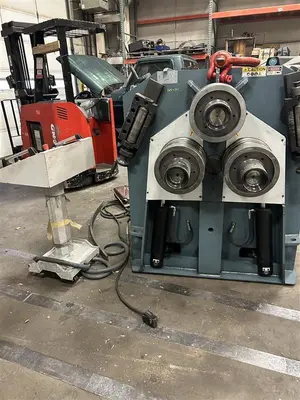

USED PBH 100 PROFILE BENDER
Have one to sell?
ConditionUsed
1 available
USED JMT/DURMA PBH 100 Profile Roll $40,250
Bottom Roll with Digital Readout (X, Y) Included
1 Set Standard Hardened & Ground Rolls Made by Special Steel Included
Special Support for Angle Irons Included
Hardened Side Supports Included
Horizontal Working Feature Included
Vertical Working Feature Included
Stress Relieved Steel Construction Body Included
All Rolls Driven by Planetary Gear Box and Hydramotor Included
Electrical & Hydraulic Protection Against Overloads Included
Moveable Command Panel Separate from the Machine Included
Hydraulic side supports
Included
Setup-Calibration-Training
Setup & Training TBA
Total Price TBA
SPECIFICATIONS
Shaft Diameters …………………….4.3 – 3.9"
Roll Diameters ……………………….12.4"
Motor Power ………………………..15 HP
Turning Speed ………………………26.2 FPM
Dimensions ………………………….68.9" L x 52.8" W x 64.9" H
Weight …………………………………7,408 lbs.
FEATURES
• Three Roll Driven
• Steel Construction
• Standard Universal Rolls
• Hardened Rolls
• Mechanical lateral guide rolls
• Programmable digital read out
• Horizontal and vertical operation
• Portable control panel
OPTIONS:
• Special rolls for tubes, profiles, cap rail, etc.
• Special support rolls for angle iron leg/in
• Wired or Wireless remote
Dimensions (in) Minimum Internal Diameter (in) Notes
1 Solid-Square 2.250”x2.250” 27” ο
1.125”x1.125” 15”
2 Flat-Along Edge 4”x1” 60” ο
1.5”x.375” 15”
3 Solid-Rectangle 7”x1.375” 35” ο
2.375”x.375” 16”
4 Angle Leg-Out 4”x4”x.375” 56” ○◊ Hyd. ZCU
5 Angle Leg-In 4”x4”x.375” 63” ○◊ Hyd. ZCU
6 T-Section Leg-Down 4”x.375” 47” ο
7 T-Section Leg-Out 4”x.375” 39” ο
8 T-Section Leg-In 4”x.375” 51” ο
9 Tubing-Square 3.250”x3.250”x.187” ∞ ο●
10 Tubing-Rectangular 4”x2”x.187” ∞ ο●
11 Solid-Round Ø 2.750” 31” ●
Ø 1.187” 16”
12 Schedule 40 Pipe Ø 4” 63” ●
Ø 1” 18”
13 Tubing -Round Ø 4.5” 55” ●
Ø 1”x.062” 16”
14 C-Section Leg-Out C6 x 13# 31” ο●
15 C-Section Leg-In C6 x 13# 39” ο●
16 I-Section Leg-In/Out S7 x 20# 39” ●
S3 x 5.7# 19”
17 I-Section Leg-In/Out W4 x 13# 39” ●
18 C-Section Leg-Up
19 I-Section Leg-Up/Down
