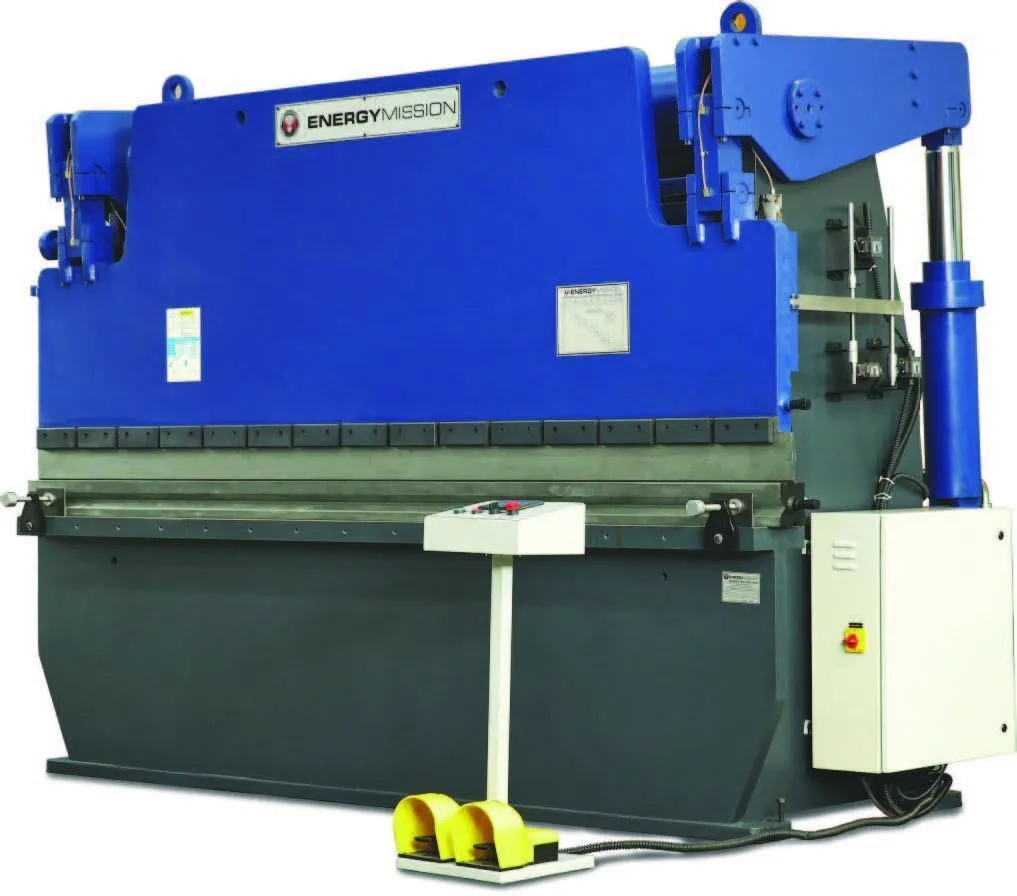

Energy Mission PBR 1636 12'x175 US Tons

Description

TECHNICAL SPECIFICATION OF PRESS-BRAKE SR NO. 1

• Model : E.M. NC PBR 1636 (With Cybelec controller)
• Capacity. : 160 MT.
• Bending Capacity in M.S.{E-250) : 5.5mm X 3600mm.
• Table size. : 230mm X 3600mm.
• Clear Pass. : 3050mm.
• Ram Strokes. : 150mm.
• Open Height. : 350mm.
• Closed Height. : 200mm.
• Throat Depth. : 300mm.
• Ram Speed mm/sec. :
- Approach : 25 mm/sec.
- Pressing : 6 mm/sec.
- Return : 42 mm/sec.
• Motor. : 15H.P.
• Over all Dimension Approx :
- Length. : 3750mm.
- Width. : 1800mm.
- Height. : 2800mm.
• Oil Tank capacity. : 500 Liters.
• Oil Specification : 68 grade Hyd. Oil
{HP, Castrol, IBP, Servo or any equivalent reputed make)
STANDARD ACCESSORIES SR NO. 1

• V & X two axis control thru NC controller
• Cyb Touch B P controller from Cybelec Switzerland
• 7" color graphic CRT Touch screen 640 x 480 pixels with LED backlight control
• Automatic calculation of the bend depth, the back gauge positioning, the angle correction and the bend allowance.
• 50 Punch / 50 dies data
• 200 X 24 sequence bend program memory
• 10 different material programs
• Part counter with auto-stop
• AC servo drives for X-axis control.
• NC Back gauge 600mm included ball screw & LM guides & Timer belt.
• 5-micron accuracy Guided Press Brake Scale for V-axis position measurement Electric control panel with selection of Auto, Inch & Single Cycle Auto.
• Movable workstation with pair of foot switch.
• Pair of lifting links.
• One suitable five way die & punch. {Un Hardened & Un Grounded)
• Centralized lubrication system with hand pump.
• Pair of sheet support.
• Manual Crowning

STANDARD AUTOMATIC X, R, 21 & 22 AXIS SR NO. 1

• AC servo drive for X, R, 21 & 22 With Joystick axis control.

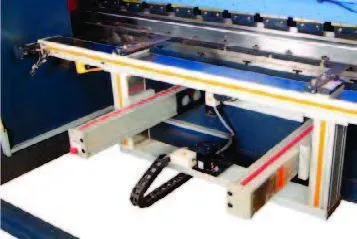

• Back gauge assembly included ball screw, drive unit, rotary encoder, LM guides, Rack Pinion, etc.
