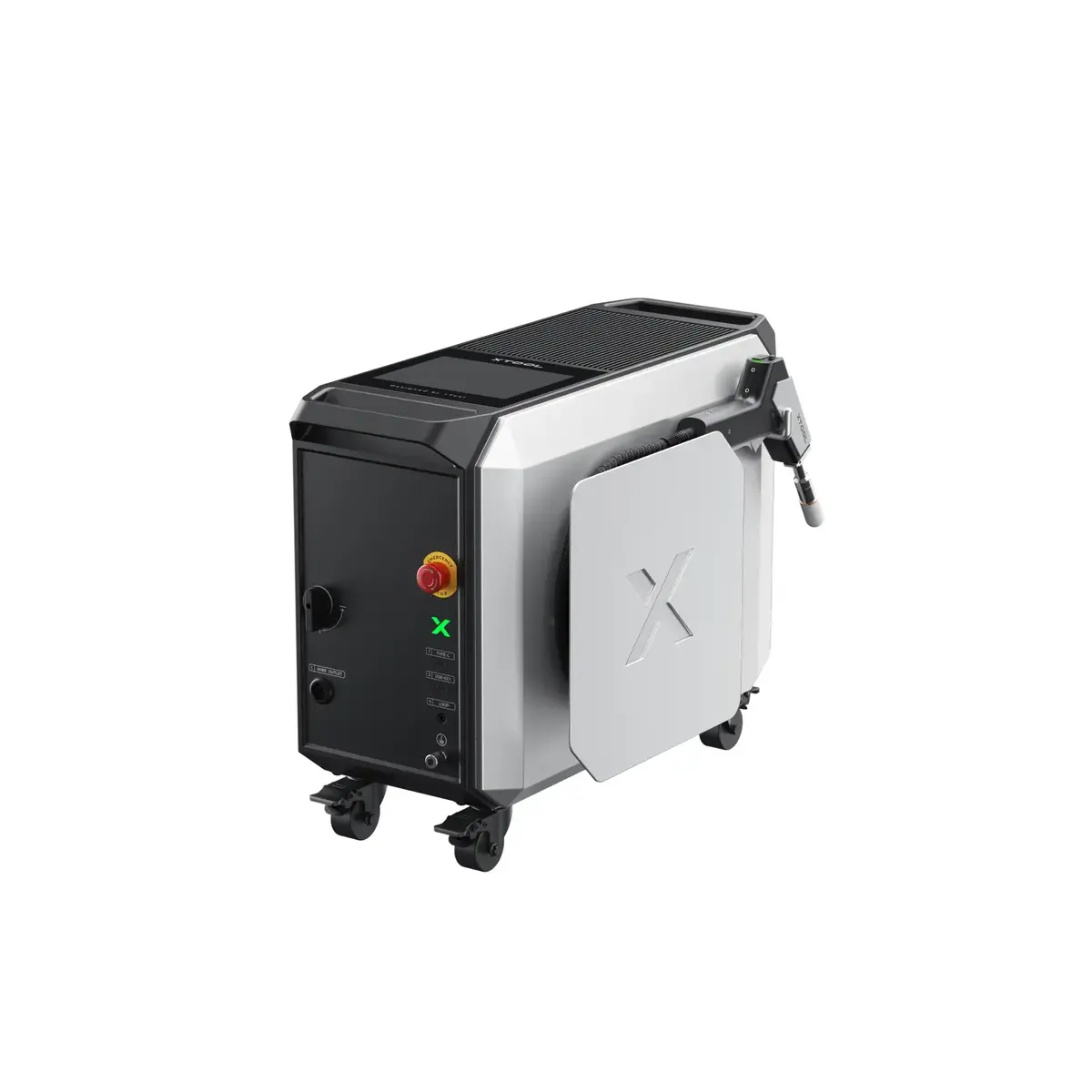

xTool MetalFab Laser Welder 800w to 1200w

Description

Processing Capacity
Laser Power
1200W

800W

Laser Type
Fiber Laser

Fiber Laser

Processing Mode
Welding / Cutting / Rust Removal & Cleaning

Welding / Cutting / Rust Removal & Cleaning

Welding Mode
Continuous Welding / Spot Welding / Pulse Welding

Continuous Welding / Spot Welding / Pulse Welding

Supported Materials
Stainless steel, aluminum, carbon steel, titanium, nickel alloy, copper, galvanized sheet, magnesium, etc.

Stainless steel, aluminum, carbon steel, titanium, nickel alloy, copper, galvanized sheet, magnesium, etc.

Processing Thickness
0.0078 - 0.197 in
(0.2 - 5 mm)

0.0078 - 0.157 in
(0.2 - 4 mm)

Laser Cleaning Width
Up to 45mm

Up to 45mm

General
Wavelengths
1080 ± 10 nm

1080 ± 10 nm

Photoelectric Conversion Rate
36%

36%

Recommended Gases
Nitrogen or Argon

Nitrogen or Argon

Cooling System
Air-cooling

Air-cooling

Safety Certification
Class 4 Laser Safety

Class 4 Laser Safety

Rated Power
4200W

3000W

Input Voltage
200 - 240V, AC 50/60Hz

200 - 240V, AC 50/60Hz

Full-load Current
MAX 21A

MAX 15A

Storage Temperature
14 ℉ - 140 ℉ (-10 ℃ - 60 ℃)

14 ℉ - 140 ℉ (-10 ℃ - 60 ℃)

Operation Temperature
14 °F - 104 ℉ (-10 ℃ - 40 °C)

14 °F - 104 ℉ (-10 ℃ - 40 °C)

Product Dimensions
Machine Dimensions
28.66 × 12.87 × 20.16 in
(728 × 327 × 512 mm)

24.88 × 11.97 × 18.58 in
(632 × 304 × 472 mm)

Cleaning Width
Max. 1.77 in (45 mm) Rust/Paint Cleaning
Max. 0.39 in (10 mm) Post-weld Cleaning

Max. 1.77 in (45 mm) Rust/Paint Cleaning
Max. 0.39 in (10 mm) Post-weld Cleaning

Machine Weight
38.2 kg

35 kg

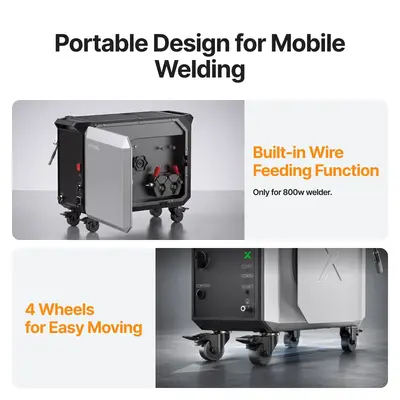

Integrated Wire Feeder
No
(Free Wire Feeder Machine Included)

Yes

Cable Length
196.85 in
(5 m)

137.8 in
(3.5 m)
