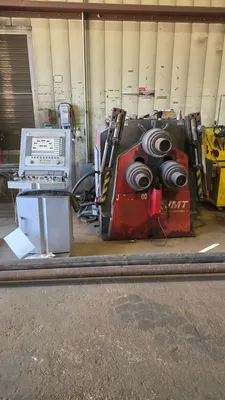

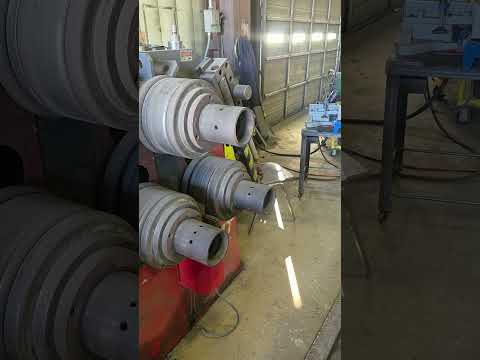

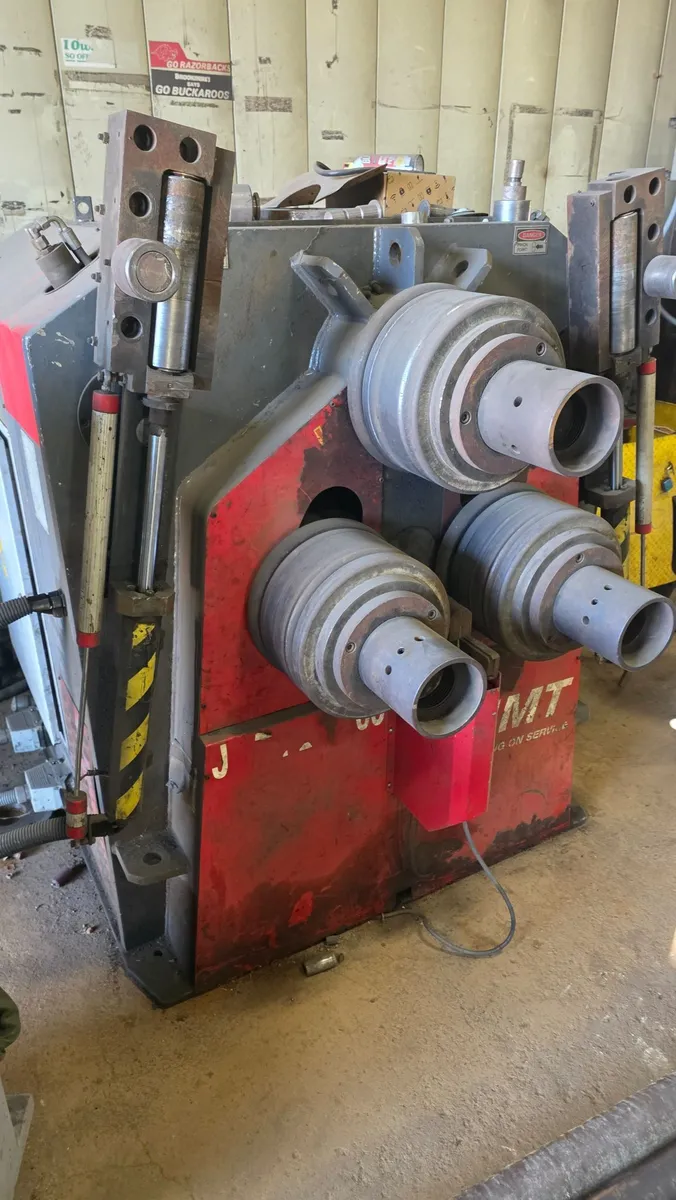

JMT PBH 100 CNC Angle Roll
Have one to sell?
ConditionUsed
1 available
Key Specifications
• Angle Capacity: 4" x 4" x 1/2"
• Top Shaft Diameter: 4.33 inches
• Side Shaft Diameter: 3.94 inches
• Roll Diameter: 12.4 inches
• Motor Power: 15 HP
• Turning Speed: 0 – 26 F.P.M. (Feet Per Minute)
• Weight: Approx. 7,408 lbs
• Dimensions: 68.9" L x 52.8" W x 64.9" H
Main Features
• Driven Rolls: 3-roll hydraulic drive system
• Operation: Horizontal and vertical working positions
• Roll Adjustment: Hydraulic top/side roll positioning with programmable digital readouts

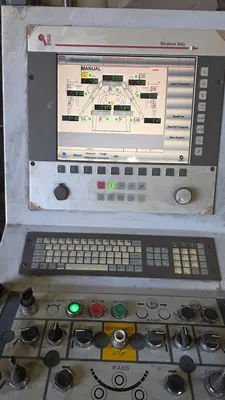

• Standard Equipment: Hardened steel rolls, mechanical lateral guide rolls, and a portable control panel.
Key Specifications
• Angle Capacity: 4" x 4" x 1/2"
• Top Shaft Diameter: 4.33 inches
• Side Shaft Diameter: 3.94 inches
• Roll Diameter: 12.4 inches
• Motor Power: 15 HP
• Turning Speed: 0 – 26 F.P.M. (Feet Per Minute)
• Weight: Approx. 7,408 lbs
• Dimensions: 68.9" L x 52.8" W x 64.9" H
Main Features
• Driven Rolls: 3-roll hydraulic drive system
• Operation: Horizontal and vertical working positions
• Roll Adjustment: Hydraulic top/side roll positioning with programmable digital readouts
• Standard Equipment: Hardened steel rolls, mechanical lateral guide rolls, and a portable control panel.
Imperial
| Angle (L1) | 4" |
| Angle (L2) | 4" |
| Angle (T) | 0.375" |
| Power | 15 hp |
