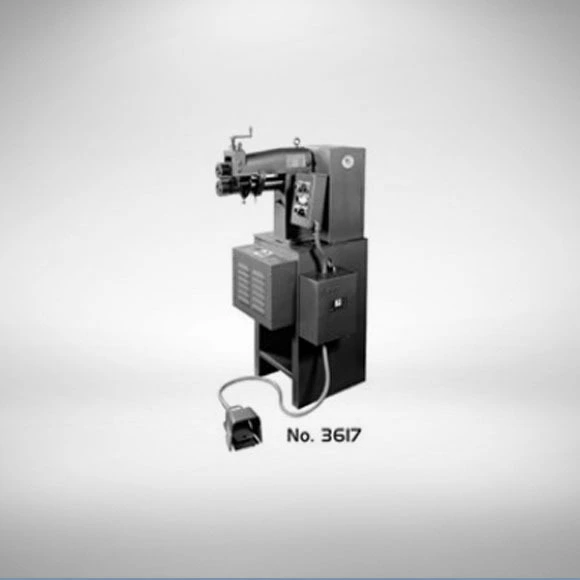

Roper Whitney Powered Beading Machines
Beading MachineA versatile machine designed for deep throat (up to 13") beading, crimping, and other roll operations on up to 18 gauge material.Back-geared, with steel horn, bronze bushed bearing and one-piece frame.Mounted on floor stand with adjustable motor mount, "V" belt drive, and 3/4 h.p. geared head motor.Unit includes gauges and spacing collars for all operations except flanging. Rolls ordered separately.Specifications:
Capacity: 18 Gauge
Depth of Throat: 13"
Distance Between Centers: 3"
Ratio Gearing: 3½:1
Roll Speed: 40 RPM
Motor (230 or 460 V, 3 ph): 3/4 HPDimensions:
Height (A): 52"
Length, F-B (B): 39"
Width, L-R (C): 14"
Throat (D): 13"
Between Centers (E): 3"
