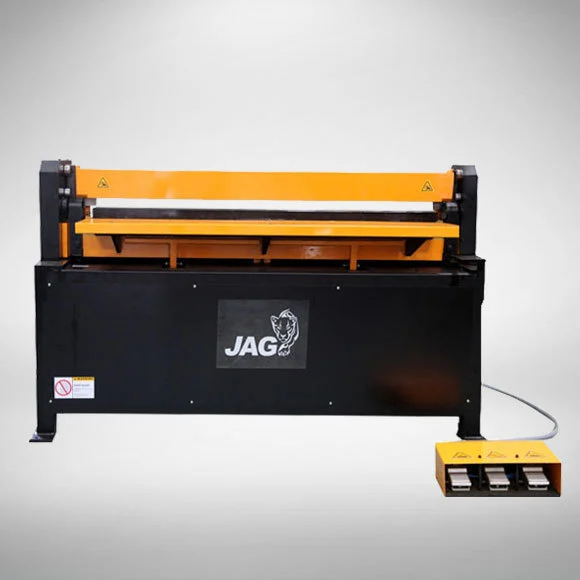

JAG Air Folder
Have one to sell?
ConditionNew
1 available
New
Free-standing general fabrication wrap brakeIdeal for forming and bending panels and other flanged metal partsPneumatic operationPneumatic drive folding beamRugged welded steel constructionMaintenance-free bearing and guidesSafety interlock controlsDial-adjustable bend angle 0-90°Automatic TDC/F notch locatorPneumatic drive clamping beam with automatic returnIncludes foot pedal control
SpecificationsCapacity: 14 – 16 gauge (1.6 – 2.0 mm)Depth of Pocket: 1/2” (12.7 mm) – uses 1-3/8” (34.9 mm) of materialMaximum Bend Length: 60″ (1525 mm)Maximum Galvanized Steel Thickness: 1/16” (1.6 mm)Minimum Wrap Duct Size: 8.7” x 8.7” (220 x 220 mm)Clean, Dry Air Supply: 11 CFM at 100 PSI (not to exceed 120 PSI)Dimensions: 88”L x 46W” x 35”H (2235 x 1170 x 890 mm)Weight: 2,046 lbs. (930 kg)
